Red Hat Enterprise Linux 5.5 Installation Guide (Screenshots)Before you start installing Red hat Linux, You should know the pre-requisites for the same i.e. the system requirements

System Requirement for Red Hat Linux 5

Parameters
Requirements
CPU Type
Pentium 4 or higher, 2GHz or higher
Memory/RAM
1 GB minimum, upto the system limit
Hard Disk
4 GB minimum

Follow the screenshots to install Red Hat Linux 5

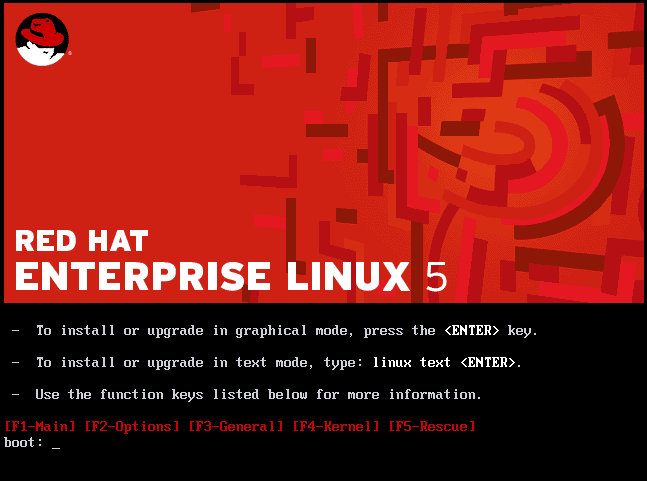

Insert the RHEL DVD into the machine and boot from it. The below page which you see is the first which comes on the screen.
This is the prompt which can be used to
  • Install using GUI (Graphics Mode)
  • Install using CLI (Text Mode)
  • Upgrade your RHEL version
  • Boot into Rescue Mode
Hit Enter and by default installation will begin using GUI setup
Red Hat Enterprise Linux 5.5 Installation Guide (Screenshots)

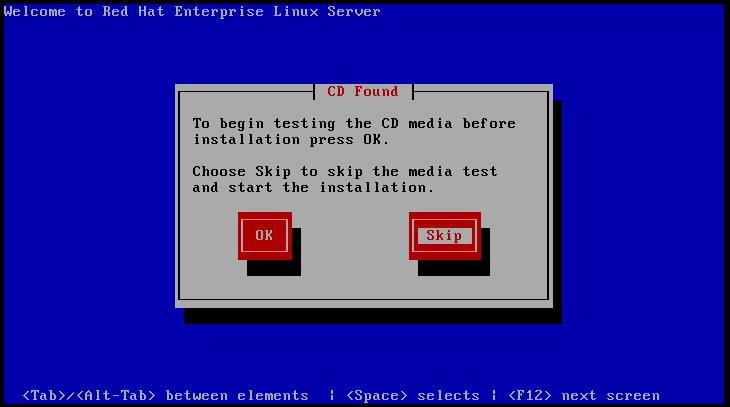

The next screen prompts you to verify the content of the DVD used. If you believe the DVD you are using is correct and not corrupt, you can skip this step as I did

Red Hat Enterprise Linux 5.5 Installation Guide (Screenshots)

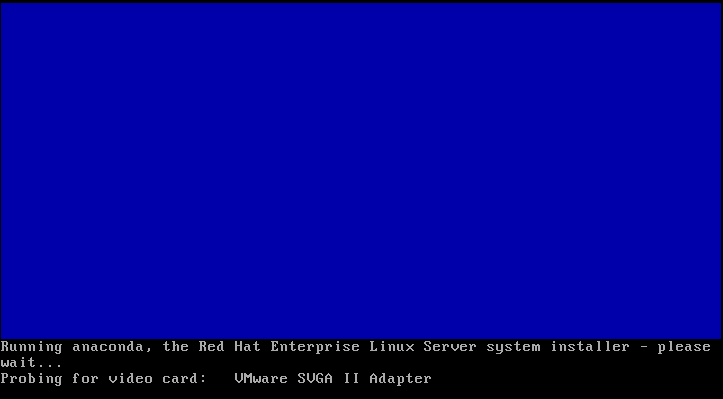

As you see in the next step anaconda installer starts which is used to install Red Hat Linux and many other similar OS like Fedora, CentOS

Red Hat Enterprise Linux 5.5 Installation Guide (Screenshots)

Click Next to start the installation

Red Hat Enterprise Linux 5.5 Installation Guide (Screenshots)

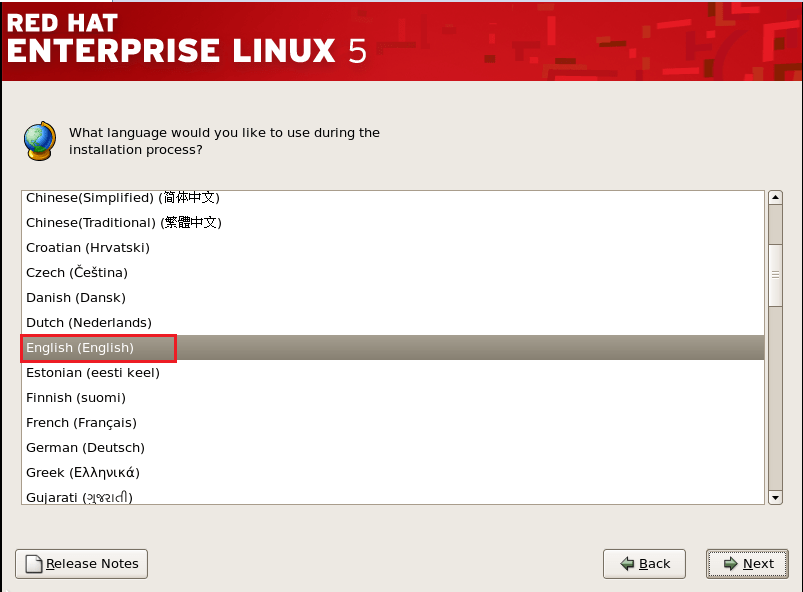

Select the preferred Language for installation, as for me it is English

Red Hat Enterprise Linux 5.5 Installation Guide (Screenshots)

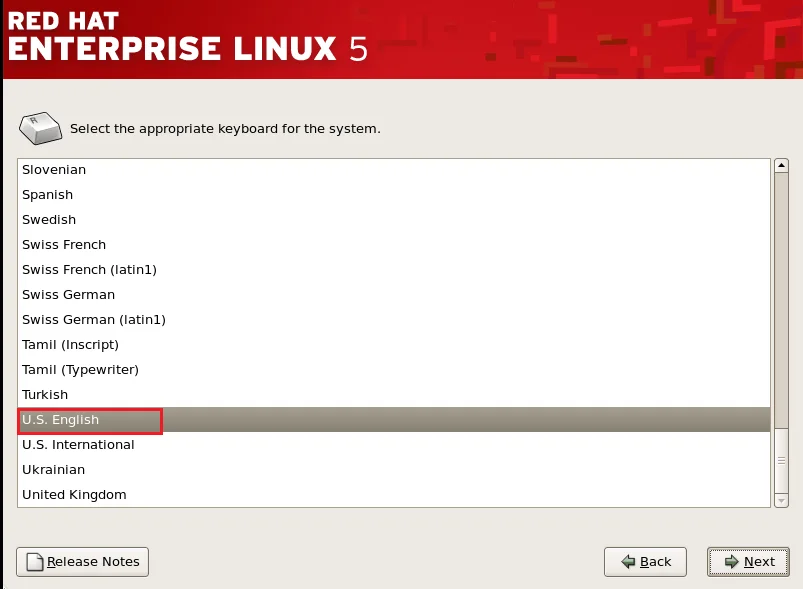

Select the keyboard Language you are using on your machine. (For most by default it is US or US International)

Red Hat Enterprise Linux 5.5 Installation Guide (Screenshots)

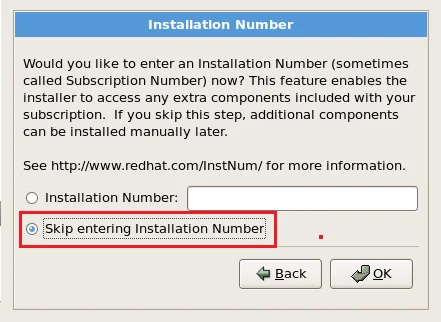

If you have a authorized installation no. provided by Red Hat, you can enter in the below shown box. As of now I don't have any such key so I will skip this step

Red Hat Enterprise Linux 5.5 Installation Guide (Screenshots)

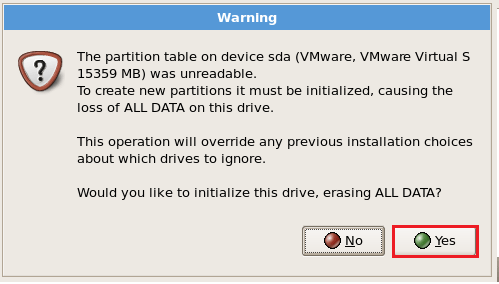

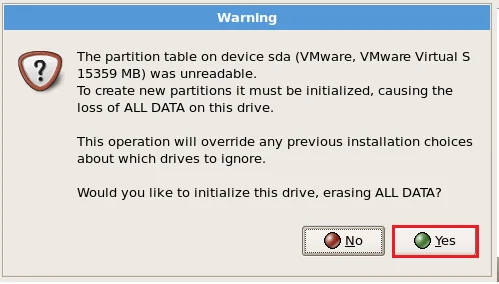

Click YES to format the hard disk

Red Hat Enterprise Linux 5.5 Installation Guide (Screenshots)

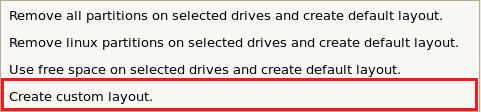

Using the drop down arrow as shown below you can select the available options for creating partitions

Red Hat Enterprise Linux 5.5 Installation Guide (Screenshots)

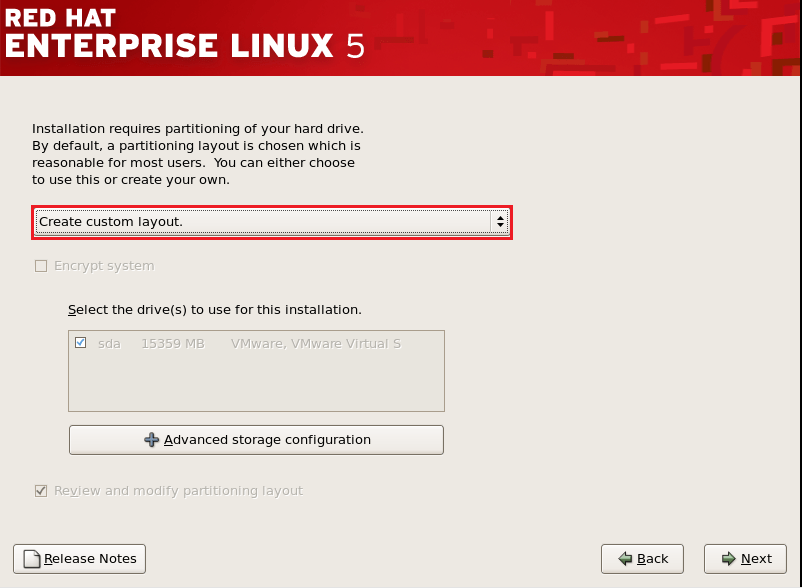

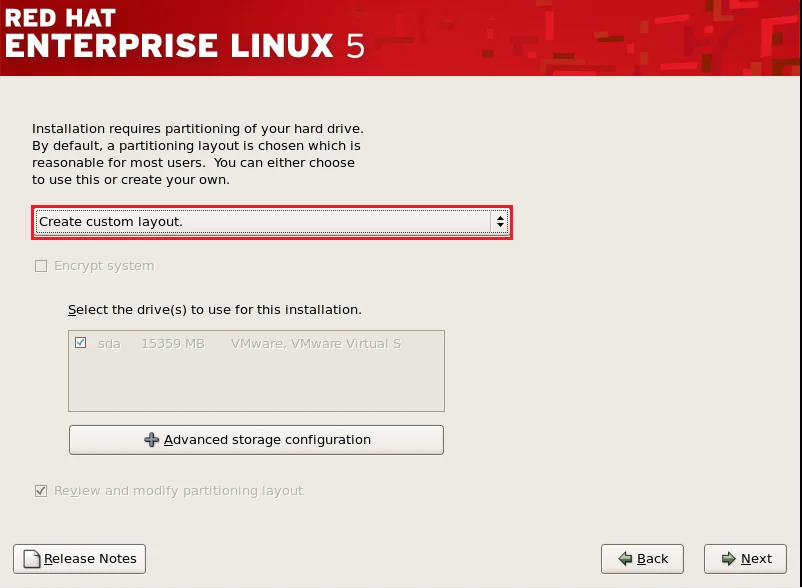

As of now I will go with the "Create custom layout" option

Red Hat Enterprise Linux 5.5 Installation Guide (Screenshots)

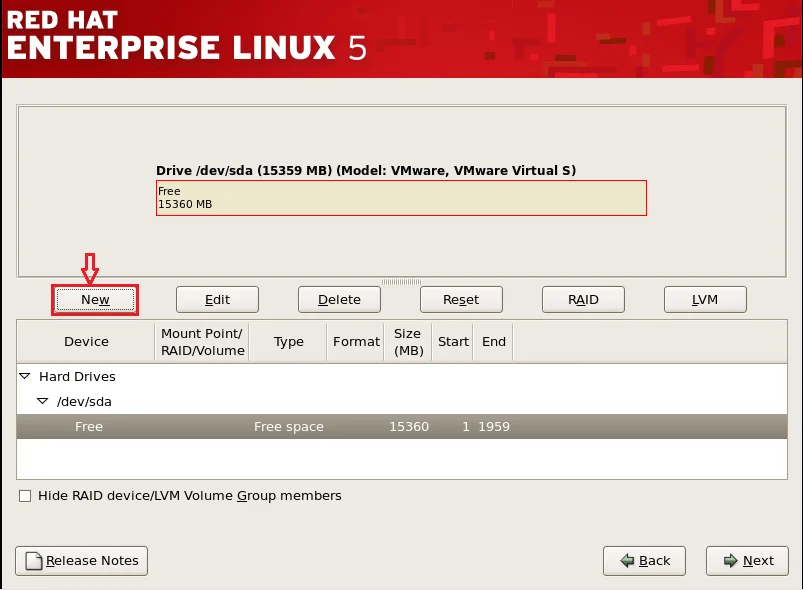

The next screen shows you the available space on the disk along with any other available partitions. In my case I am installing on a fresh machine so it shows all the space as free.

Click on New to create partition

Red Hat Enterprise Linux 5.5 Installation Guide (Screenshots)

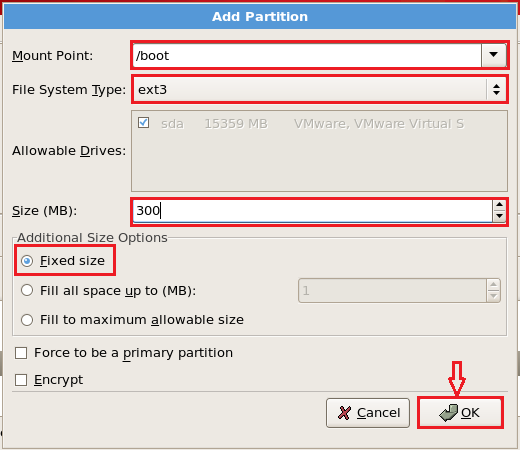

Create /boot partition as shown below. The maximum expected boot size is not more than 200-300 MB. So you can give space accordingly

Red Hat Enterprise Linux 5.5 Installation Guide (Screenshots)

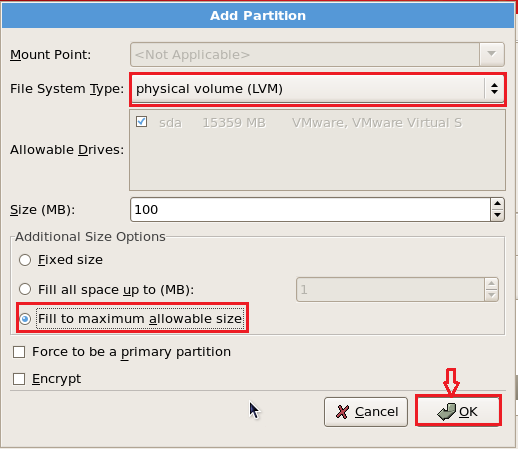

Now again select New and create a LVM partition of all the available hard disk as shown below. Select the options as shown in RED

Red Hat Enterprise Linux 5.5 Installation Guide (Screenshots)

 Select LVM option

Red Hat Enterprise Linux 5.5 Installation Guide (Screenshots)

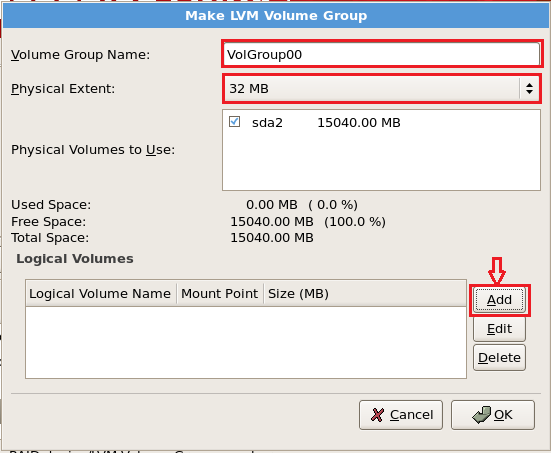

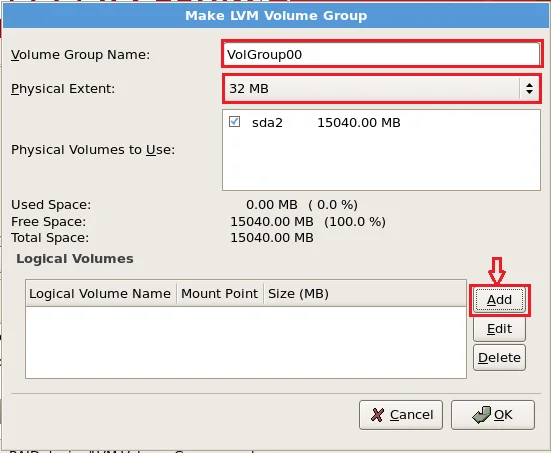

Now a new window will pop up where you can give a Volume Group name as per your requirement.
Next click on Add as shown below to create other LVM partitions such as root, home, var, tmp as per your requirement

Red Hat Enterprise Linux 5.5 Installation Guide (Screenshots)

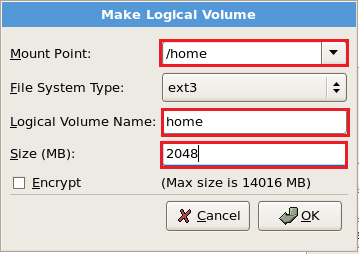

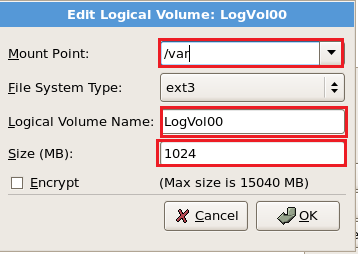

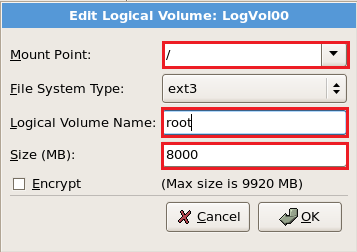

Create the required partitions and allocate the space to each partition as shown in below screenshots

Red Hat Enterprise Linux 5.5 Installation Guide (Screenshots)

Red Hat Enterprise Linux 5.5 Installation Guide (Screenshots)

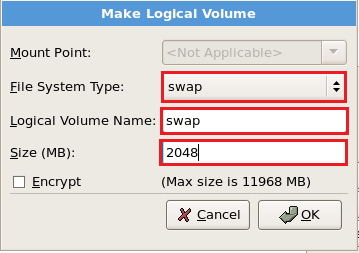

Create a swap partition. No mount point required for it. Just select a file system type as swap and allocate the size. For our case 2048 MB

Red Hat Enterprise Linux 5.5 Installation Guide (Screenshots)

Red Hat Enterprise Linux 5.5 Installation Guide (Screenshots)

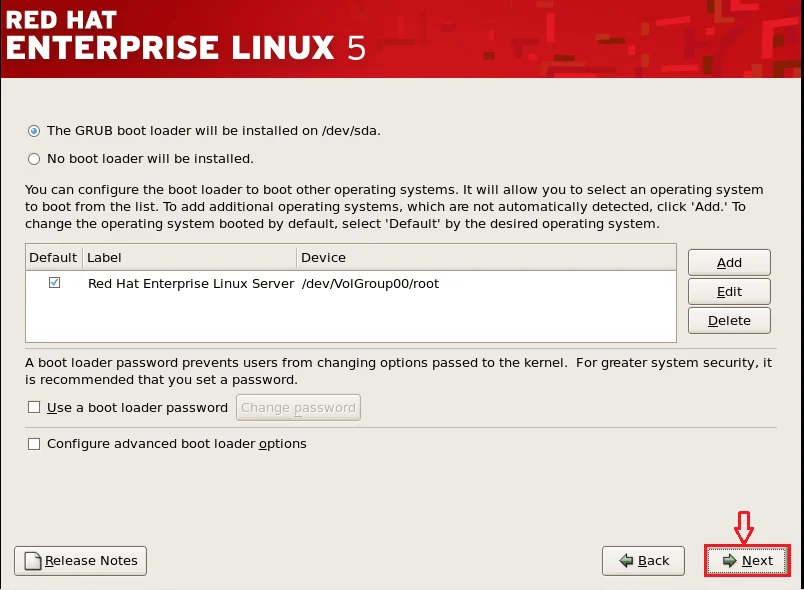

Once done click on Next and move to the next screen

Red Hat Enterprise Linux 5.5 Installation Guide (Screenshots)

From here there are two methods to configure networking.

  • DHCP method
  • Static method

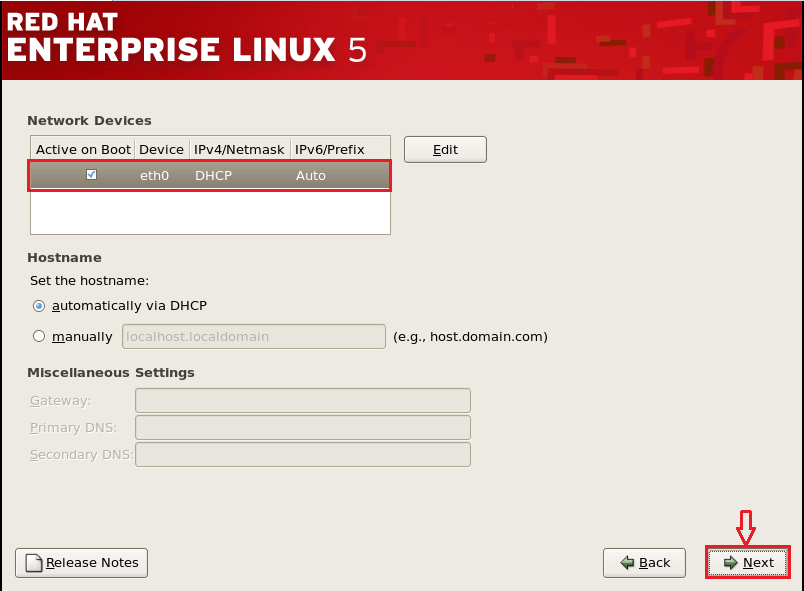

For DHCP follow the below screenshot

Red Hat Enterprise Linux 5.5 Installation Guide (Screenshots)
Using DHCP

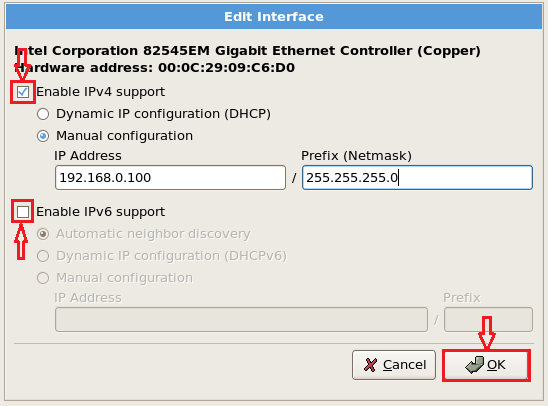

For static method follow the below screenshots

Red Hat Enterprise Linux 5.5 Installation Guide (Screenshots)
Using Static I

Red Hat Enterprise Linux 5.5 Installation Guide (Screenshots)
Using Static II

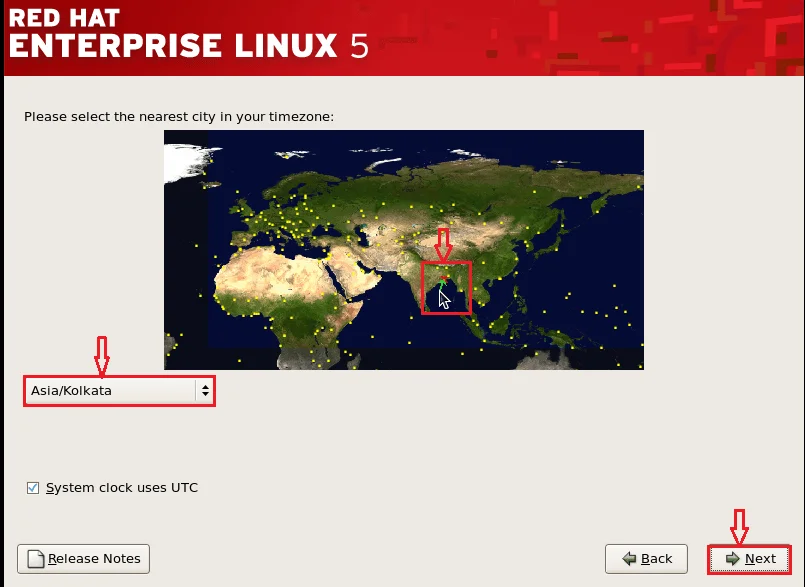

Next screen will ask for the region you are installing your server. For me it is INDIA for which I will select Asia/Kolkata as shown below

Red Hat Enterprise Linux 5.5 Installation Guide (Screenshots)

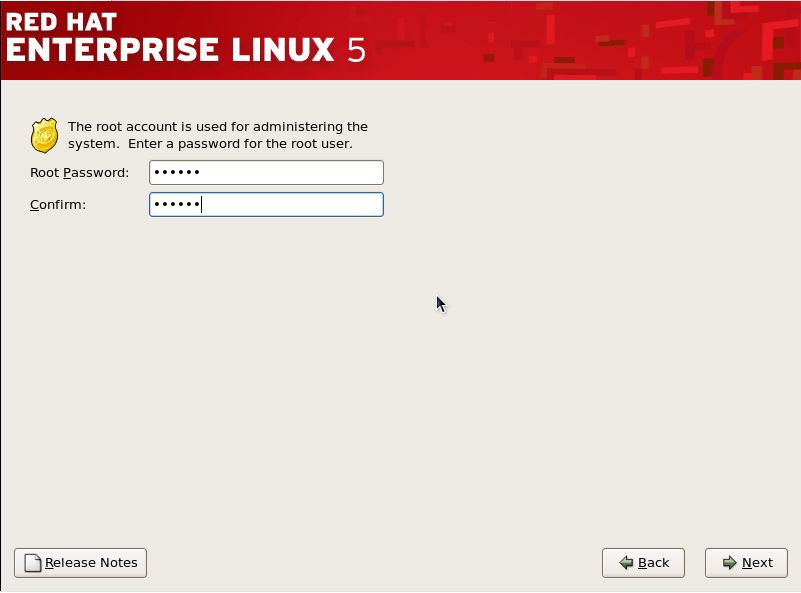

Provide a password

Red Hat Enterprise Linux 5.5 Installation Guide (Screenshots)

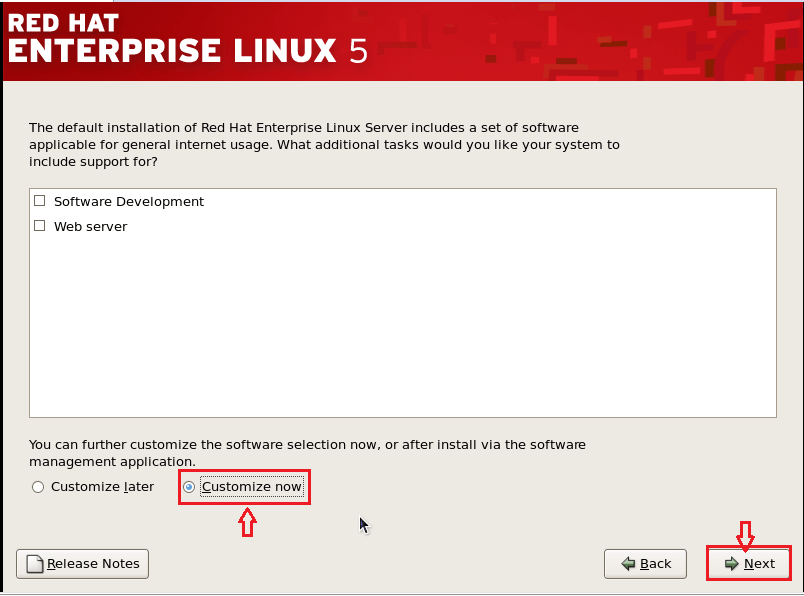

Select Customize Now to select the list of rpms you want to include at the time of installation

Red Hat Enterprise Linux 5.5 Installation Guide (Screenshots)

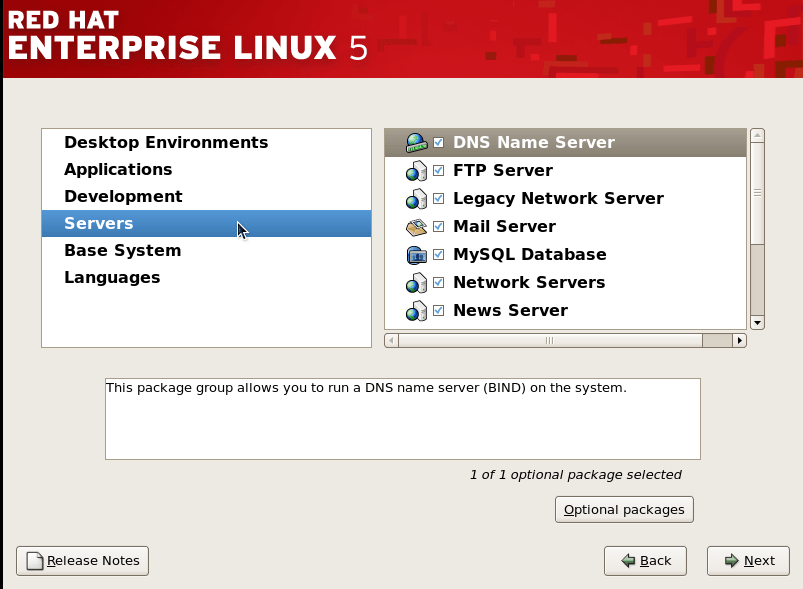

Select the list of packages from the below shown options

Red Hat Enterprise Linux 5.5 Installation Guide (Screenshots)

Red Hat Enterprise Linux 5.5 Installation Guide (Screenshots)

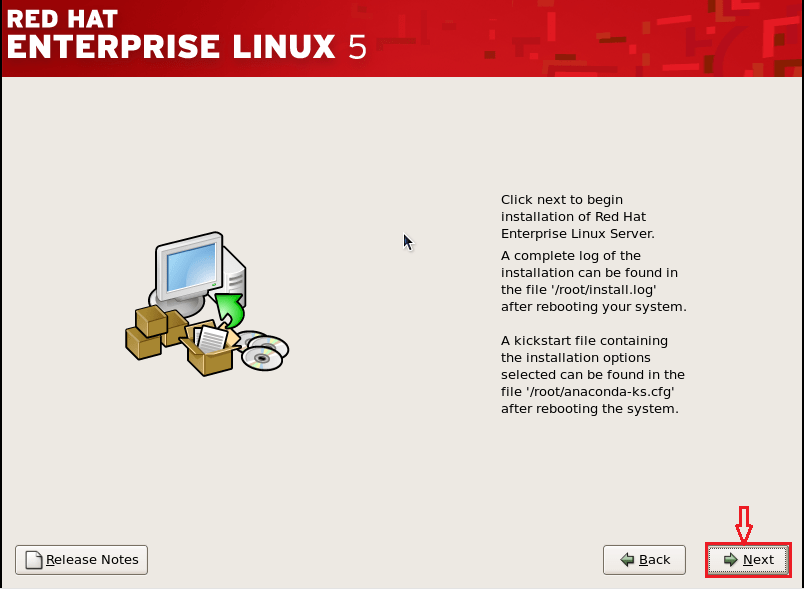

Click Next to start the installation

Red Hat Enterprise Linux 5.5 Installation Guide (Screenshots)

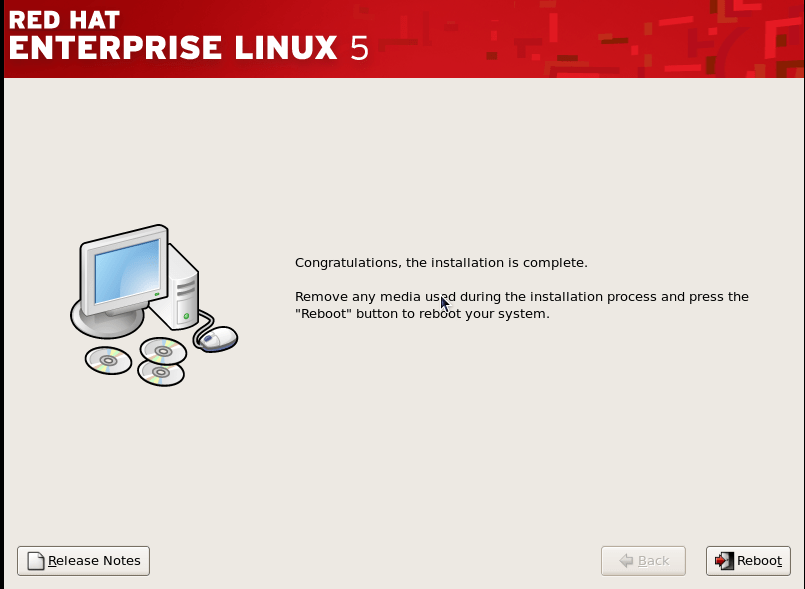

Once the installation is done. Click on reboot to move ahead with the installation process as yet your Linux is not completely installed. Still some initial configuration is pending

Red Hat Enterprise Linux 5.5 Installation Guide (Screenshots)

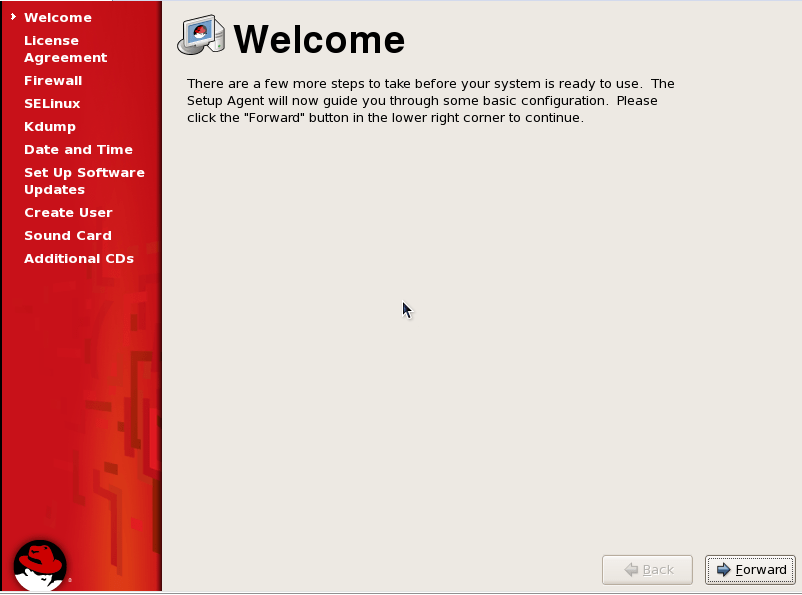

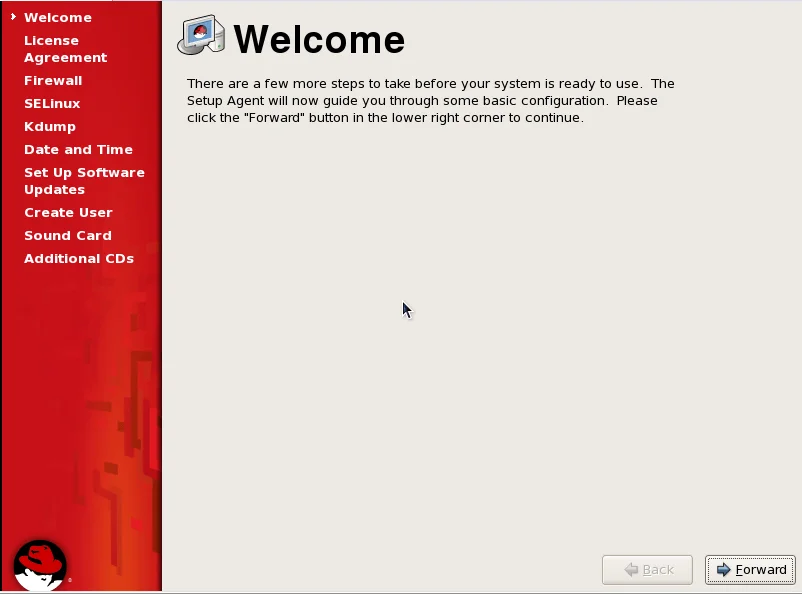

Click on Forward

Red Hat Enterprise Linux 5.5 Installation Guide (Screenshots)

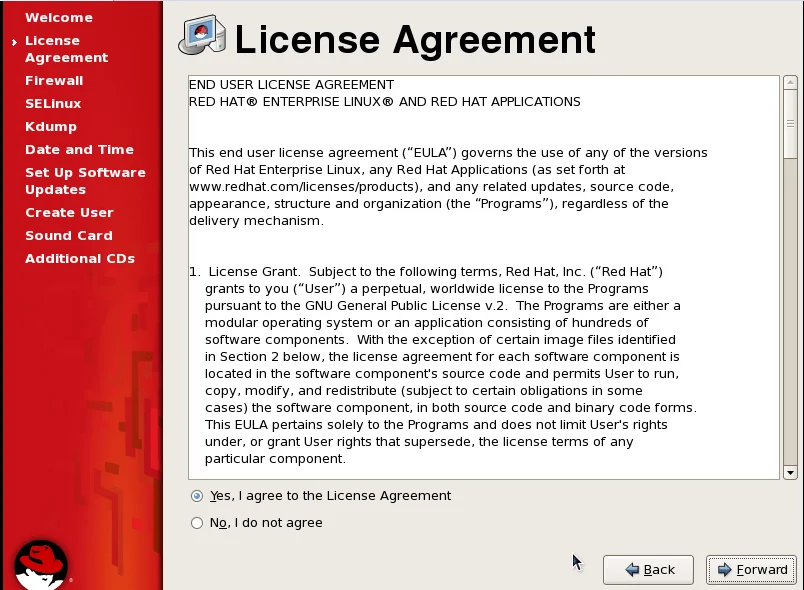

Accept the License and Agreement

Red Hat Enterprise Linux 5.5 Installation Guide (Screenshots)

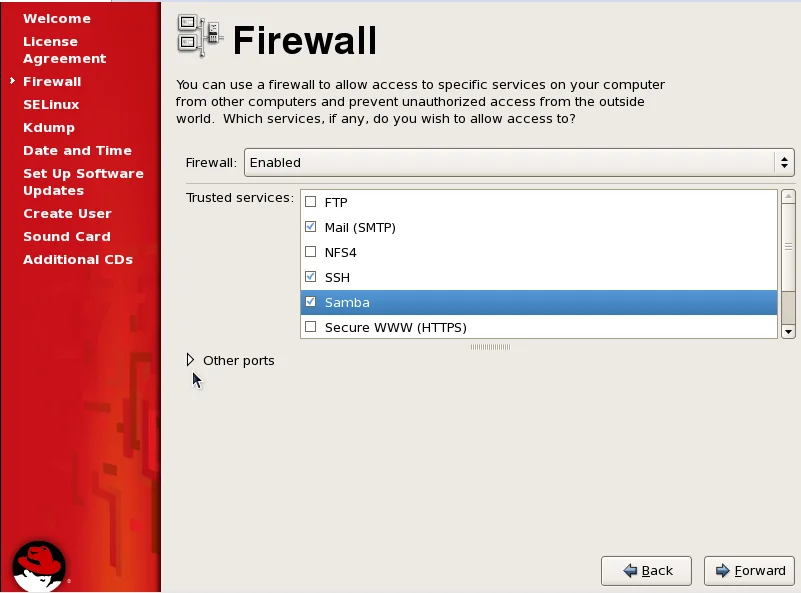

You can enable or disable the firewall using the drop down menus. Also you have option to enable selective services through the firewall for your server as shown below

Red Hat Enterprise Linux 5.5 Installation Guide (Screenshots)

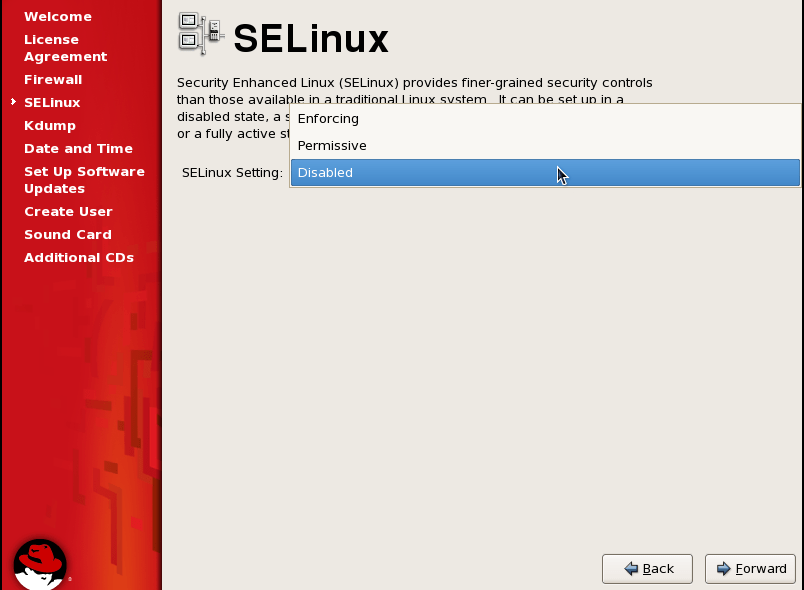

You can choose to enable or disable SELinux

Red Hat Enterprise Linux 5.5 Installation Guide (Screenshots)

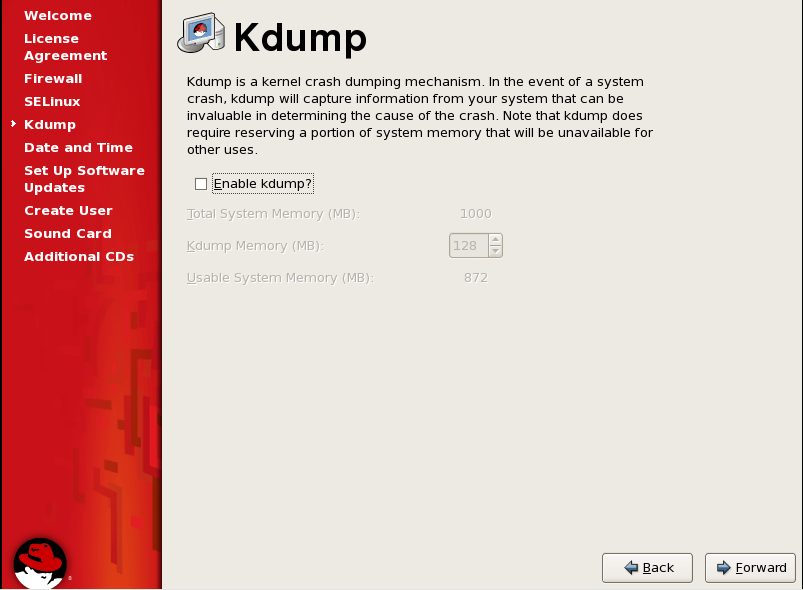

If you want you can enable Kdump by checking the below check box

Red Hat Enterprise Linux 5.5 Installation Guide (Screenshots)

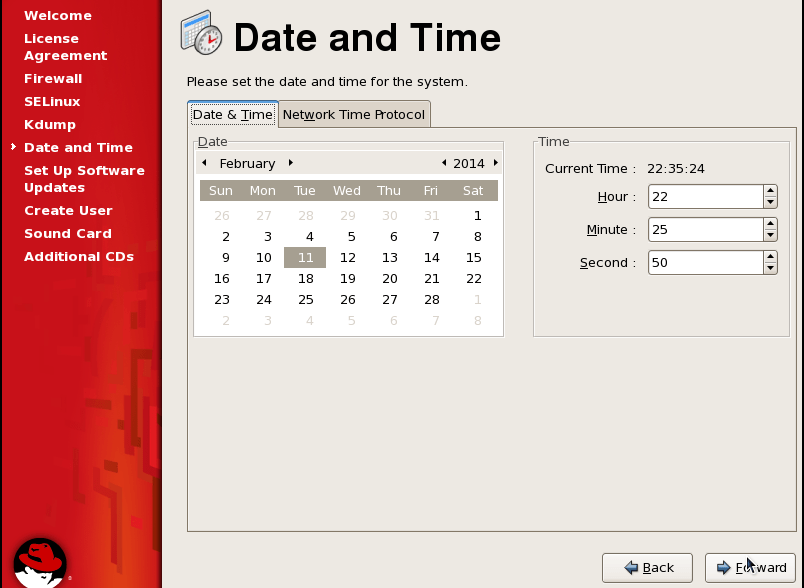

Set the date and time

Red Hat Enterprise Linux 5.5 Installation Guide (Screenshots)

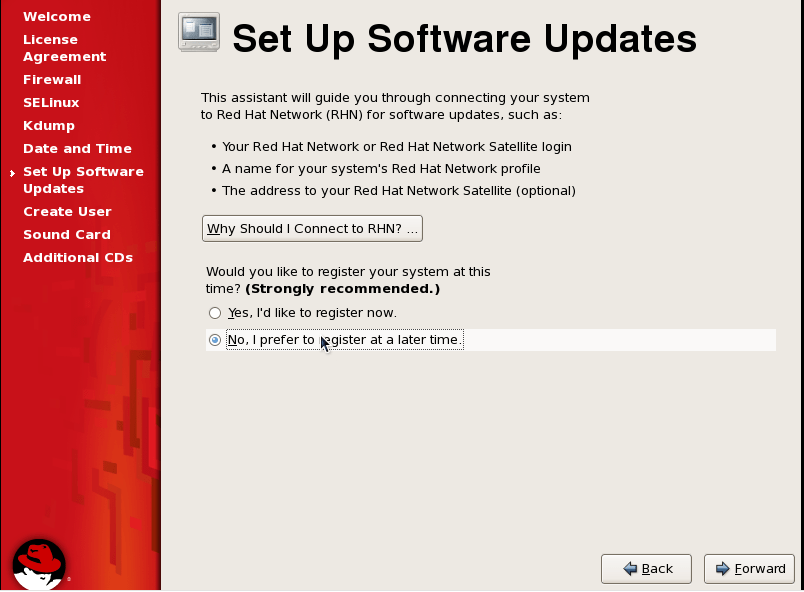

In this step you can register your server with RHN so that it can get regular updates for all the patches and bug fixes regularly. As of now we will skip registering, I will show you to do the same from terminal in my next post.

Red Hat Enterprise Linux 5.5 Installation Guide (Screenshots)

Red Hat Enterprise Linux 5.5 Installation Guide (Screenshots)

Red Hat Enterprise Linux 5.5 Installation Guide (Screenshots)

In this step you can create a user(optional)

Red Hat Enterprise Linux 5.5 Installation Guide (Screenshots)

Red Hat Enterprise Linux 5.5 Installation Guide (Screenshots)

Red Hat Enterprise Linux 5.5 Installation Guide (Screenshots)

Since you made changes in SElinux settings, the system will go for a reboot to take the changes affect

Red Hat Enterprise Linux 5.5 Installation Guide (Screenshots)

After the reboot your system is ready for use

Red Hat Enterprise Linux 5.5 Installation Guide (Screenshots)
