Step by Step CentOS 7 (64 bit) Installation Guide with Screenshots

Step by Step CentOS 7 (64 bit) Installation Guide with Screenshots

Please follow the screenshots to understand the installation process of CentOS 7 64-bit.

(Click on the image to enlarge the view)

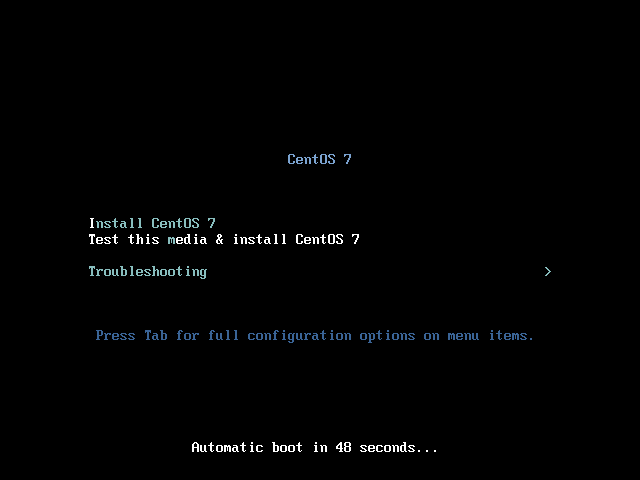

Insert the CentOS DVD and boot your machine with the cdrom. You will get the below screen.
Select "Install CentOS 7" and Press Enter

Step by Step CentOS 7 (64 bit) Installation Guide with Screenshots

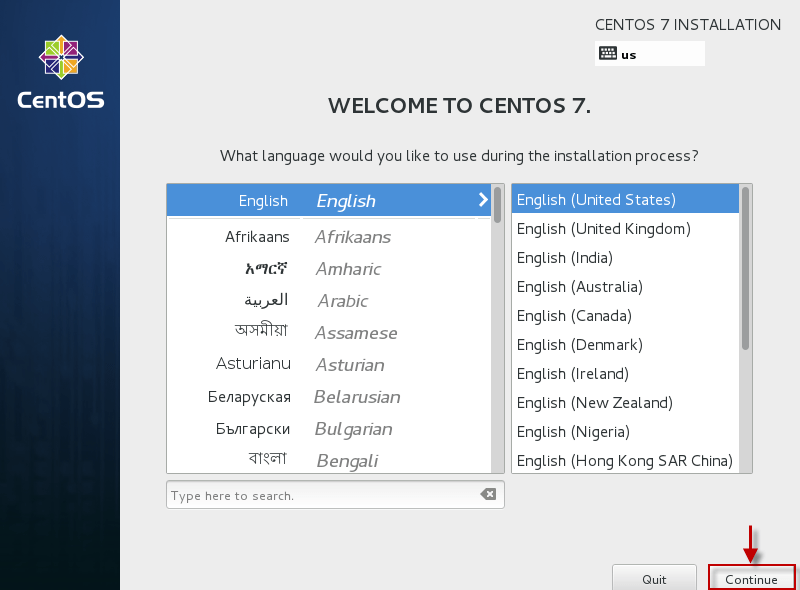

Next Select the Language as per your preference and click on "Continue"

Step by Step CentOS 7 (64 bit) Installation Guide with Screenshots

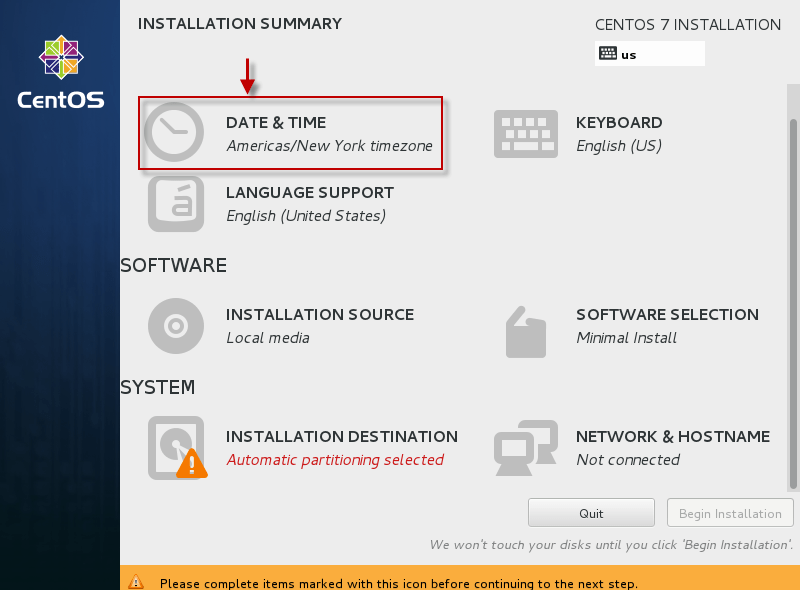

The Next screen completely new as compared to earlier releases of CentOS. Now you have to work on all the thumbnails you see on this screen one by one. So lets start by adjusting "Date and Time"

Step by Step CentOS 7 (64 bit) Installation Guide with Screenshots

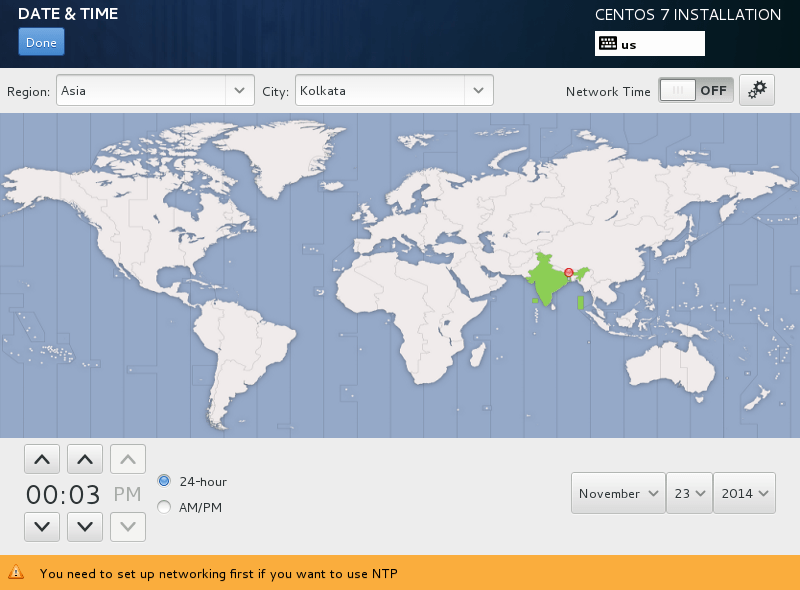

Next you will get the below screen where you can select your continent and click on "Done"

Step by Step CentOS 7 (64 bit) Installation Guide with Screenshots

NOTE: I am skipping the "Language Support" and "Keyboard" as it already shows English(US) which we had opted for in the earlier options above.

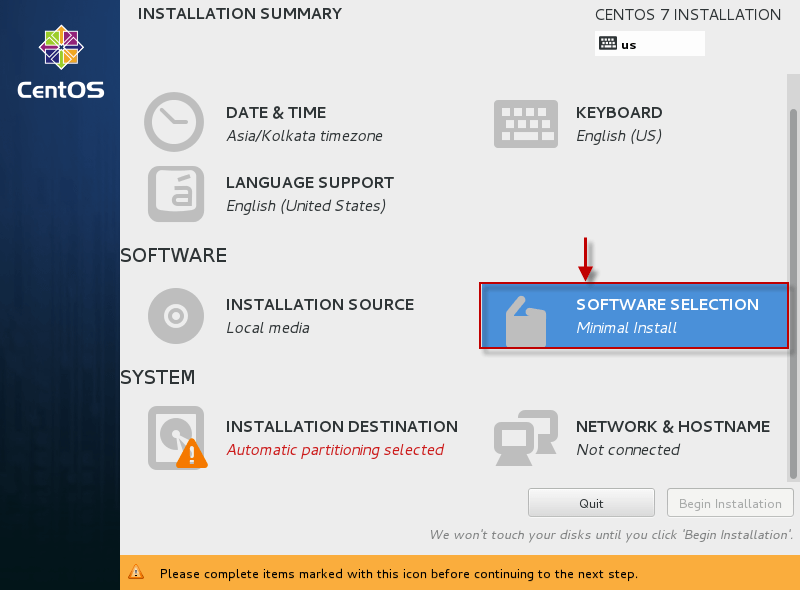

You will come back to your previous screen where you can select the next thumbnail to edit. Lets go to "Software Installation"
Step by Step CentOS 7 (64 bit) Installation Guide with Screenshots

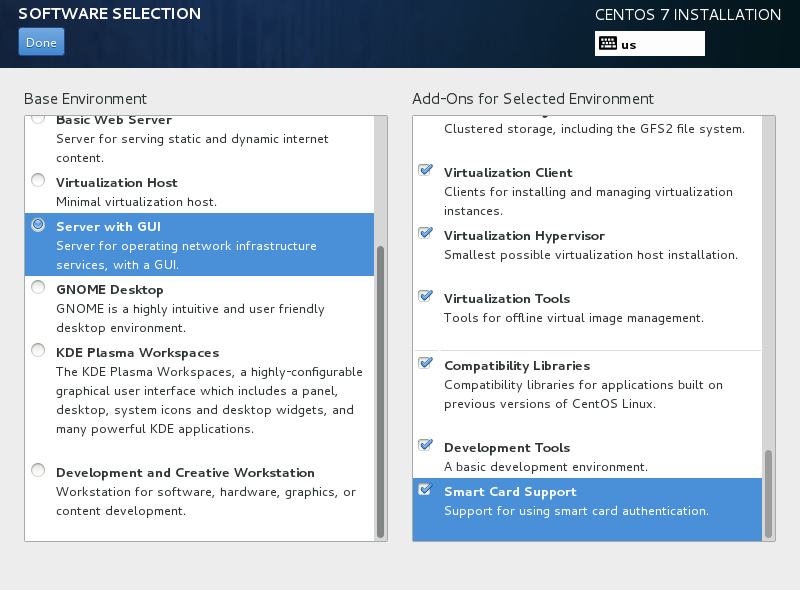

Here you will find a bunch of pre-defined groups of packages which you can select as per your environment. Select any one "Base Environment" and in case you want any add ons the same can be selected from the left panel as shown below. Once selected click on "Done" to go back to the previous screen.
Step by Step CentOS 7 (64 bit) Installation Guide with Screenshots

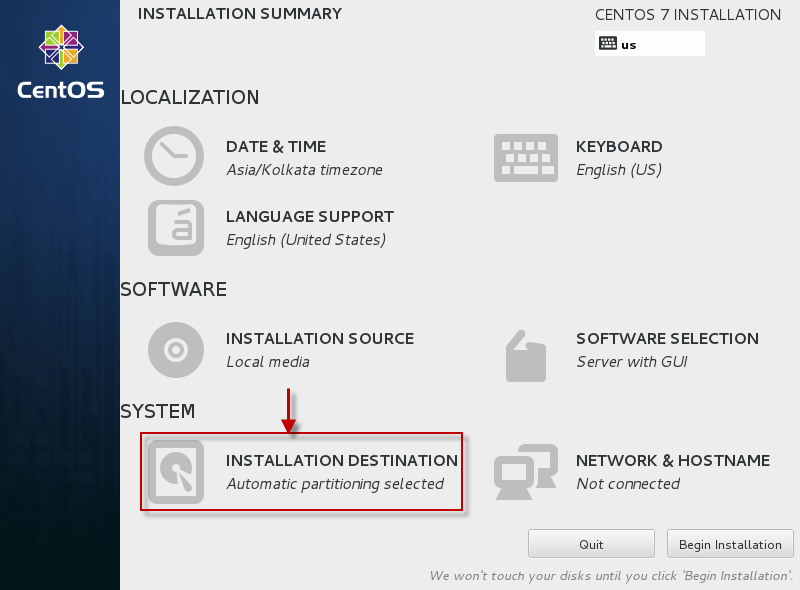

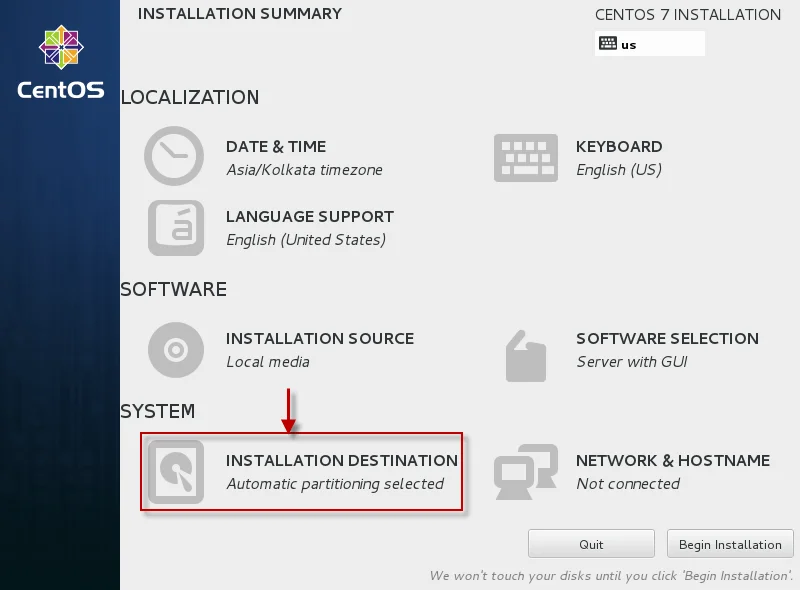

Next lets configure our partition using "Installation Destination"

Step by Step CentOS 7 (64 bit) Installation Guide with Screenshots

Now in my case I am using simple internal datastore to install my OS. But in case you want to add any iSCSI Target, Click on "Add Disk" and add the iscsi target details. For now we will skip those details.
Select the disk where you want to continue the installation. As you see a "check mark" is visible once I selected the disk.
Make sure you have checked the box "I will configure partitioning" or else the image will automatically create partitions for you.
Click on "Done"
Step by Step CentOS 7 (64 bit) Installation Guide with Screenshots

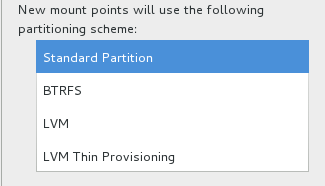

Since you opted for manual configuration of partition the next screen will ask for the type of partition you want to create. Here you can select

  • LVM,
  • Standard Partition,
  • BTRFS,
  • LVM Thin Provisioning
Step by Step CentOS 7 (64 bit) Installation Guide with Screenshots

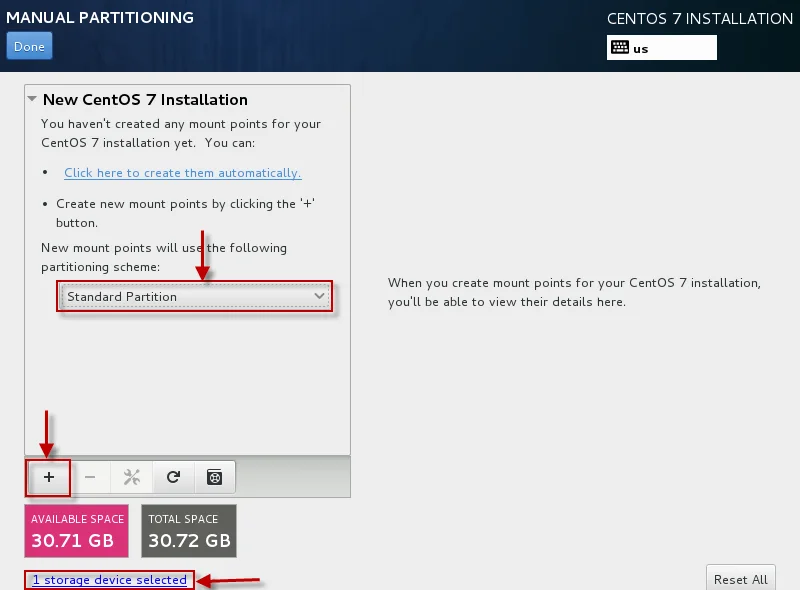

As for now we will select "Standard Partition" and click on "Done".

Step by Step CentOS 7 (64 bit) Installation Guide with Screenshots

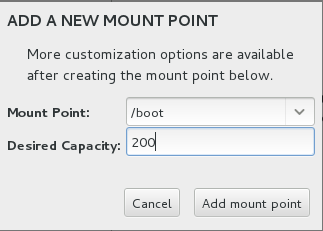

Click the "+" button as shown above and create a new "Mount Point". Assign 200MB of space to the partition

Step by Step CentOS 7 (64 bit) Installation Guide with Screenshots

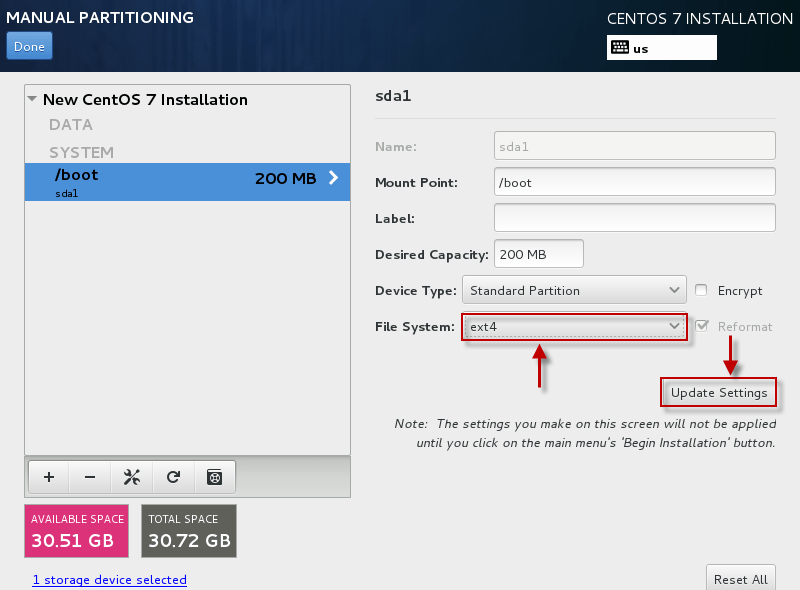

By default "XFS" filesystem is selected for any partition you create. Let us change that to ext4 as shown below and update the settings. The list of available options for filesystem is as shown below
Step by Step CentOS 7 (64 bit) Installation Guide with Screenshots

Step by Step CentOS 7 (64 bit) Installation Guide with Screenshots

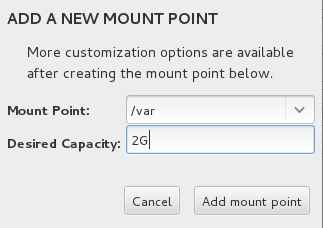

Similarly create any other mount point as per your requirement.

Step by Step CentOS 7 (64 bit) Installation Guide with Screenshots

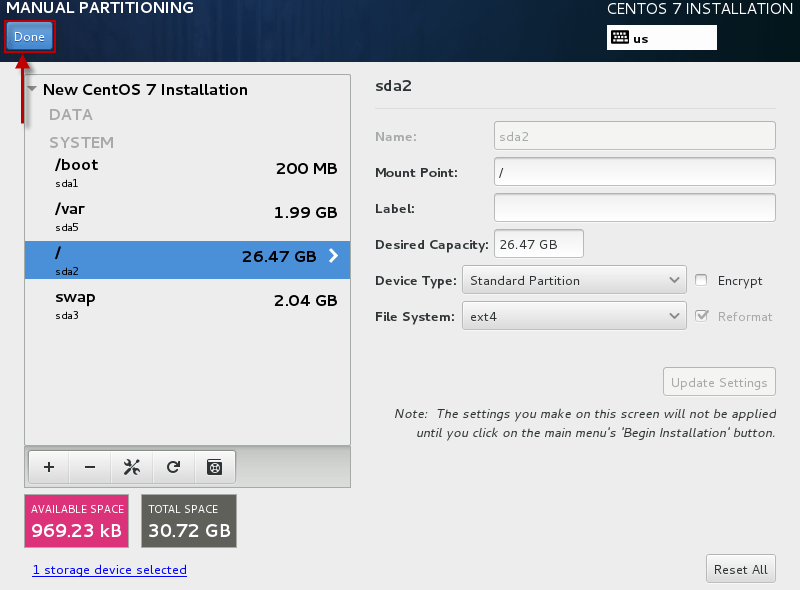

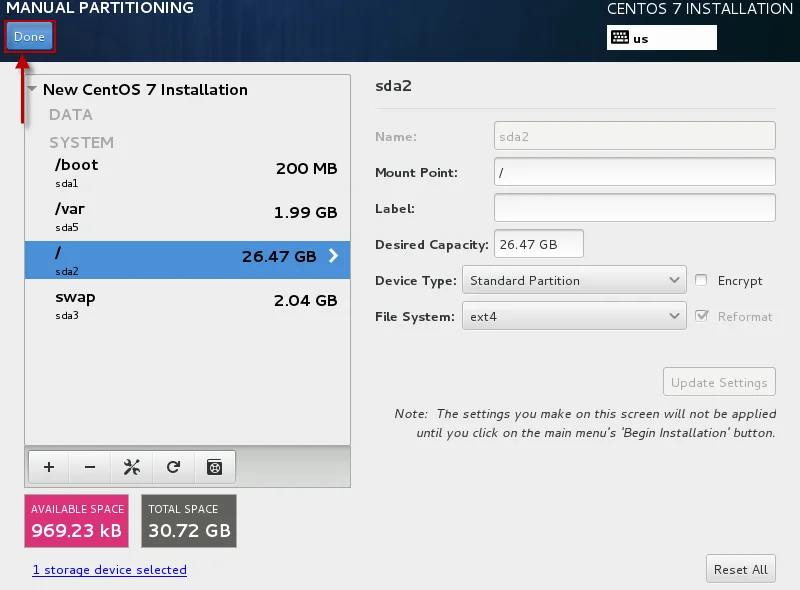

So as you see we have created /boot, /var, /, and swap partition with ext4 filesystem. Lets click on "Done" as we are done with the partitioning.

Step by Step CentOS 7 (64 bit) Installation Guide with Screenshots

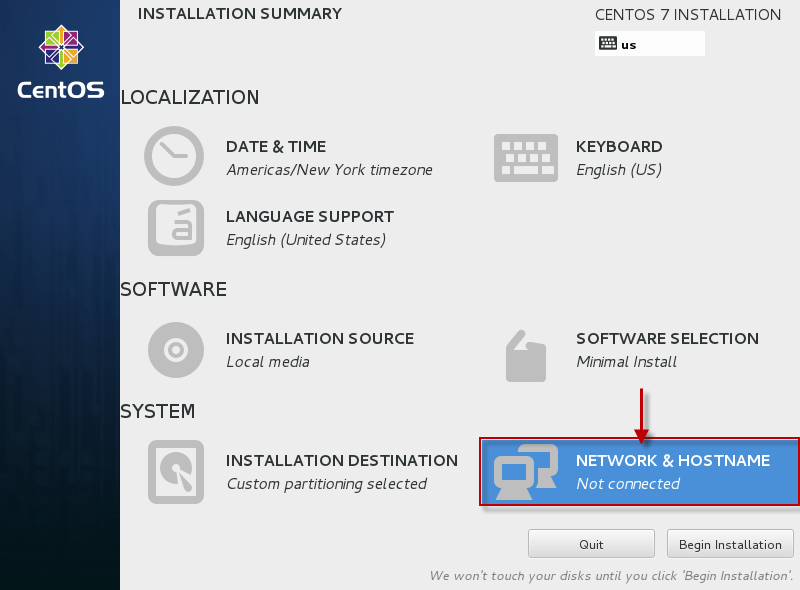

Next lets configure the "Network and Hostname"

Step by Step CentOS 7 (64 bit) Installation Guide with Screenshots

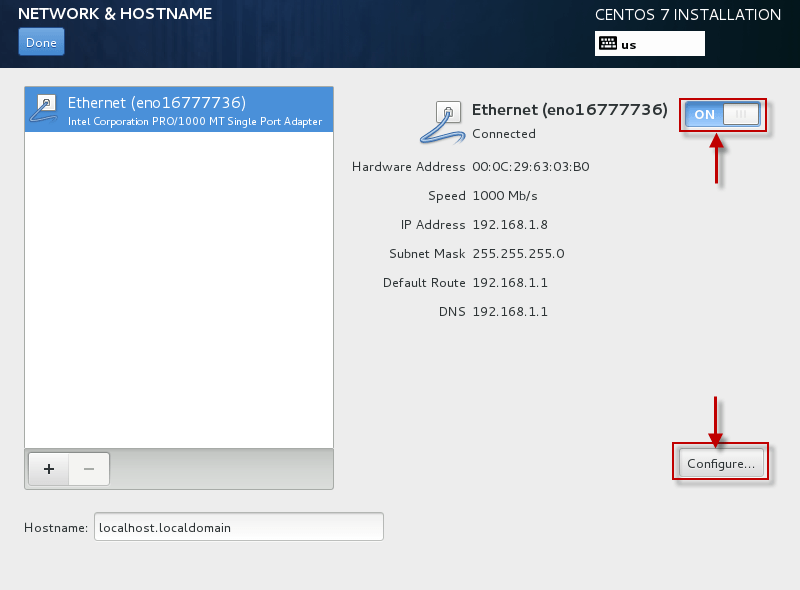

Turn "ON" the ethernet device connected to your machine and click on "Configure" to configure the network settings
Also change the "hostname" as per your environment

Step by Step CentOS 7 (64 bit) Installation Guide with Screenshots

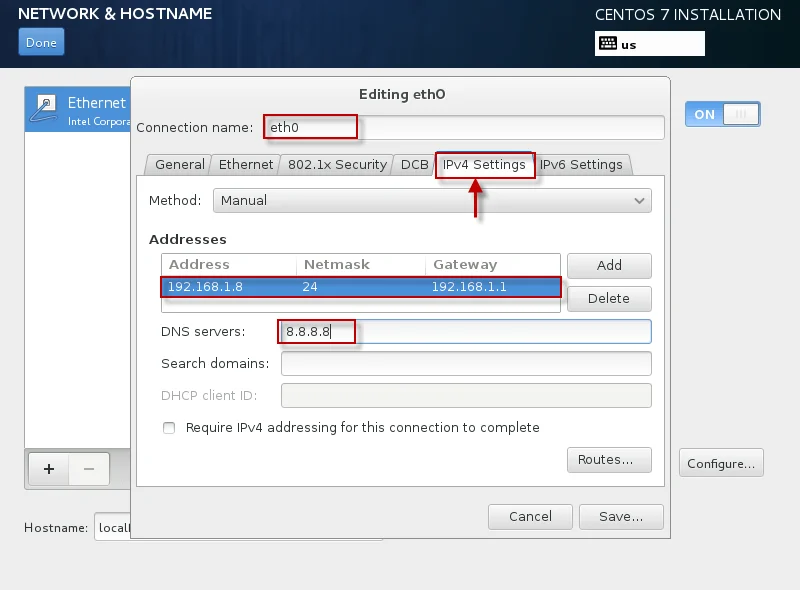

Change the Ethernet device or else you can skip that part. Next configure you IP details as per your environment i.e IPv4 or IPv6. We are using IPv4 so selected the "IPv4 Settings" and added the IP, Netmask, Gateway and DNS details in the same.. Click on "Done" to save the configuration and go a step back.

Step by Step CentOS 7 (64 bit) Installation Guide with Screenshots

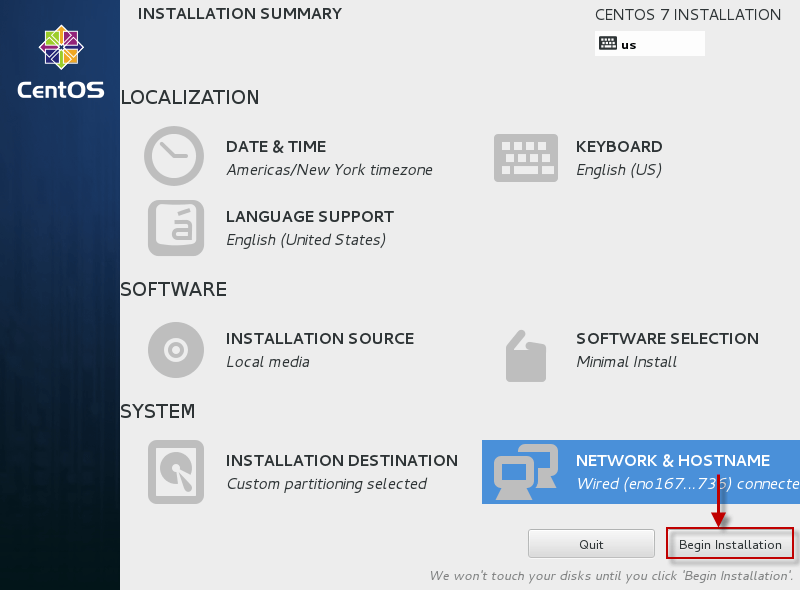

So we are done here with all the options on this screen so we can "Begin Installation"

Step by Step CentOS 7 (64 bit) Installation Guide with Screenshots

As you see the installation has begun in the mean time you can add a password for your root user. Also you can create additional user by using the "User Creation" thumbnail.

Step by Step CentOS 7 (64 bit) Installation Guide with Screenshots

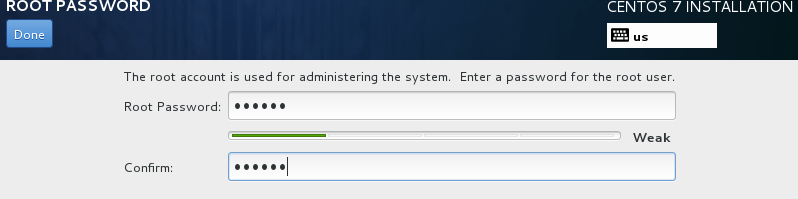

As you see I am providing my root password below

Step by Step CentOS 7 (64 bit) Installation Guide with Screenshots

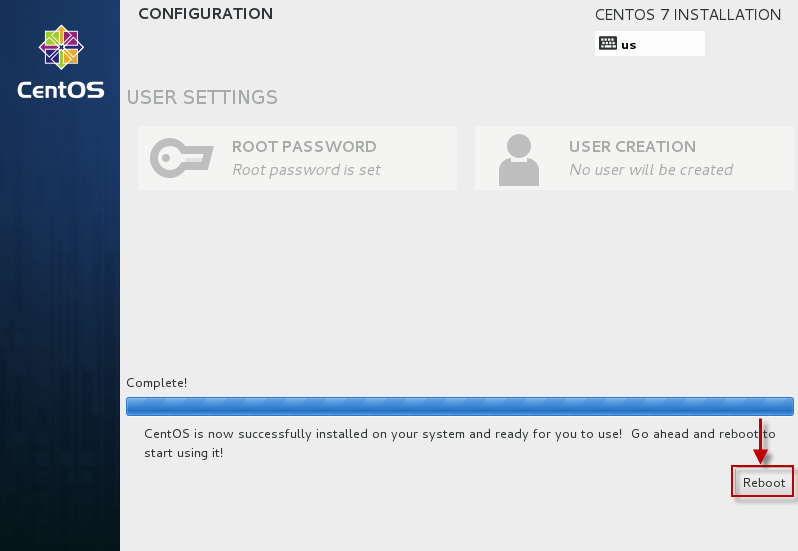

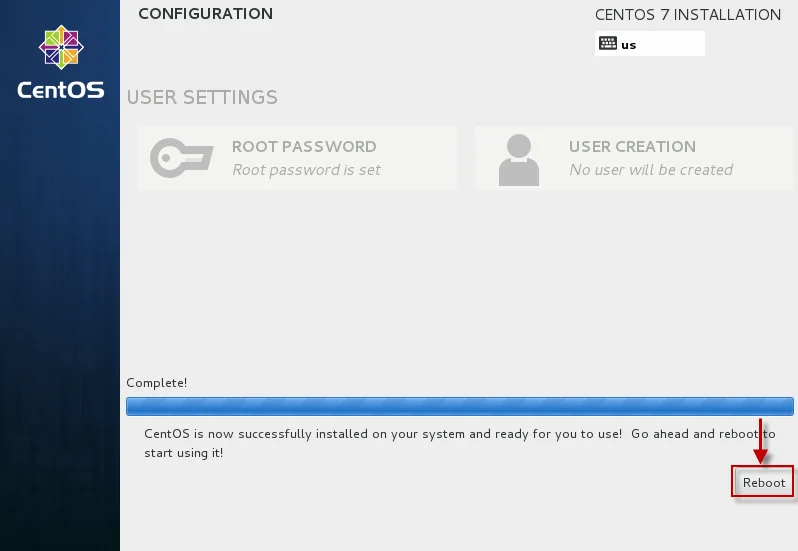

Once the installation is finished, Reboot the machine.

Step by Step CentOS 7 (64 bit) Installation Guide with Screenshots

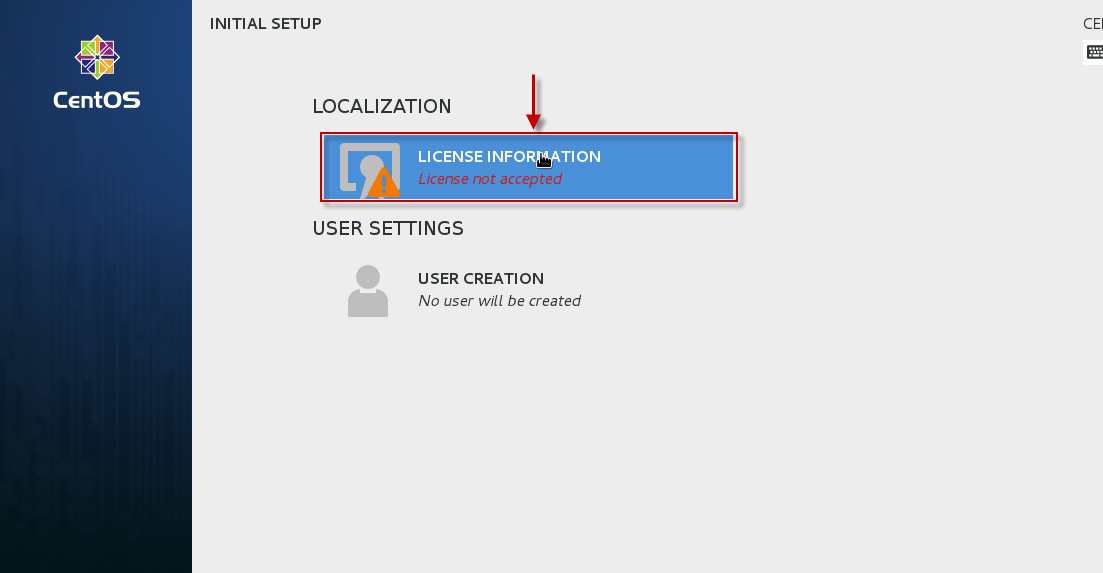

Once the machine reboots, next it will prompt the below screen. Click on "License Information"

Step by Step CentOS 7 (64 bit) Installation Guide with Screenshots

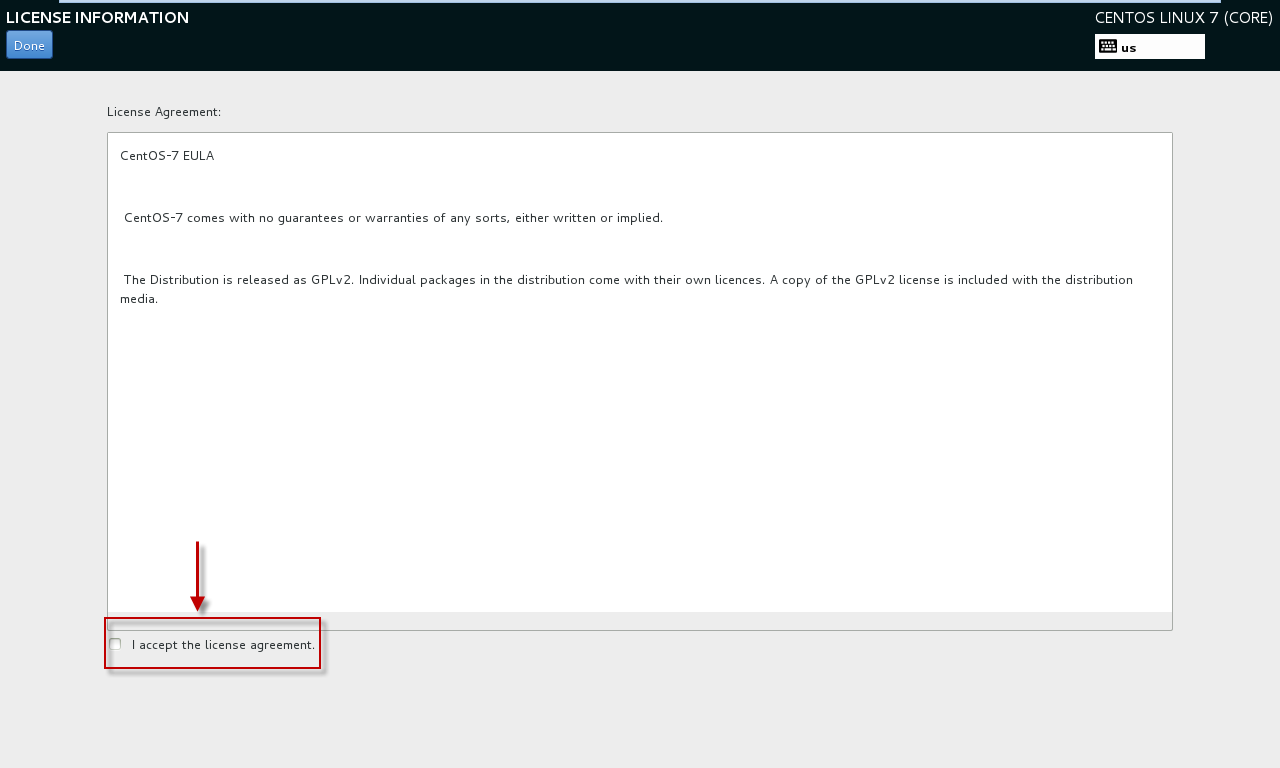

Accept the "License Agreement" and Click "Done"

Step by Step CentOS 7 (64 bit) Installation Guide with Screenshots

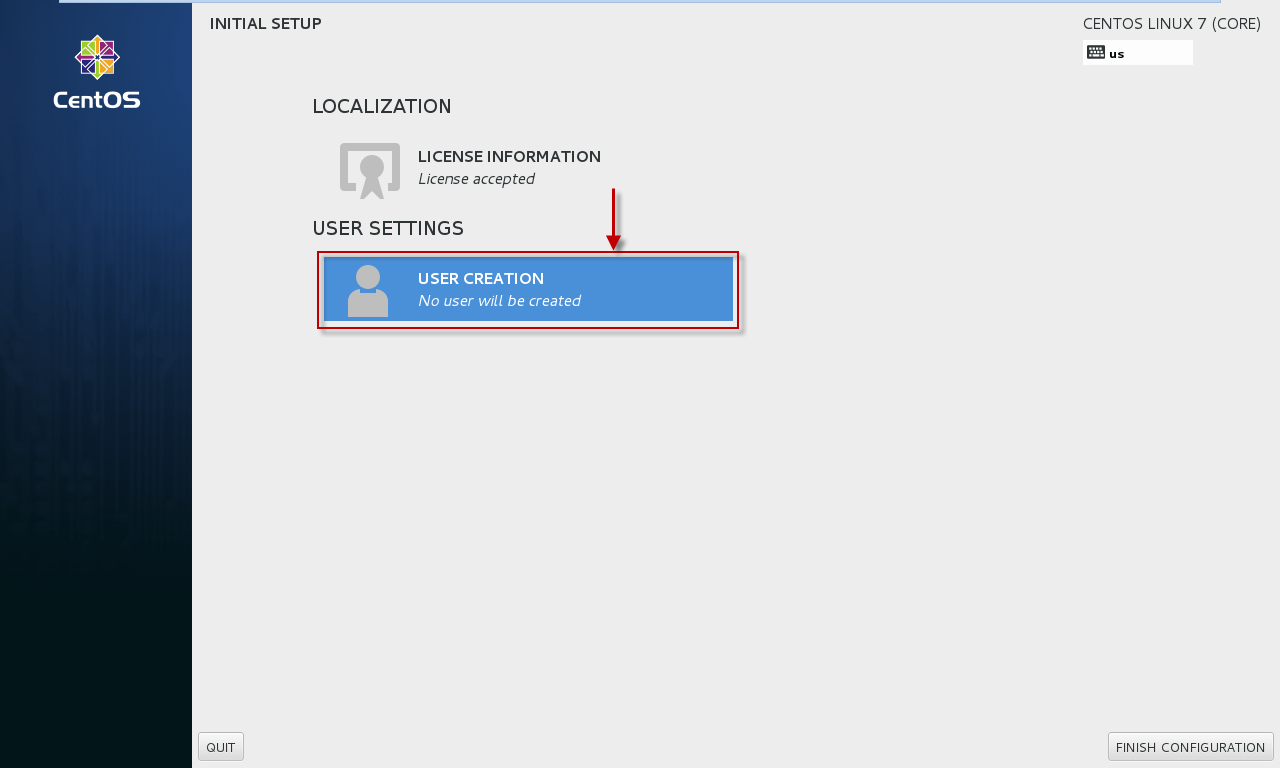

Next you will return to your previous screen . Here you can create a user which will be used to login for the first time

Step by Step CentOS 7 (64 bit) Installation Guide with Screenshots

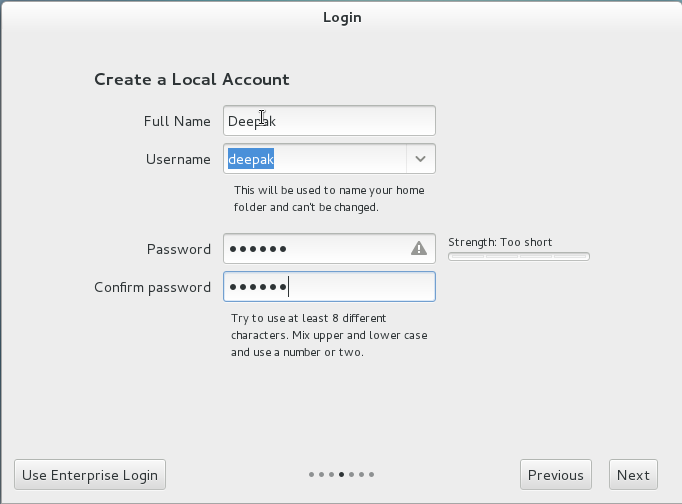

Provide the user details and Click on "Done"

Step by Step CentOS 7 (64 bit) Installation Guide with Screenshots

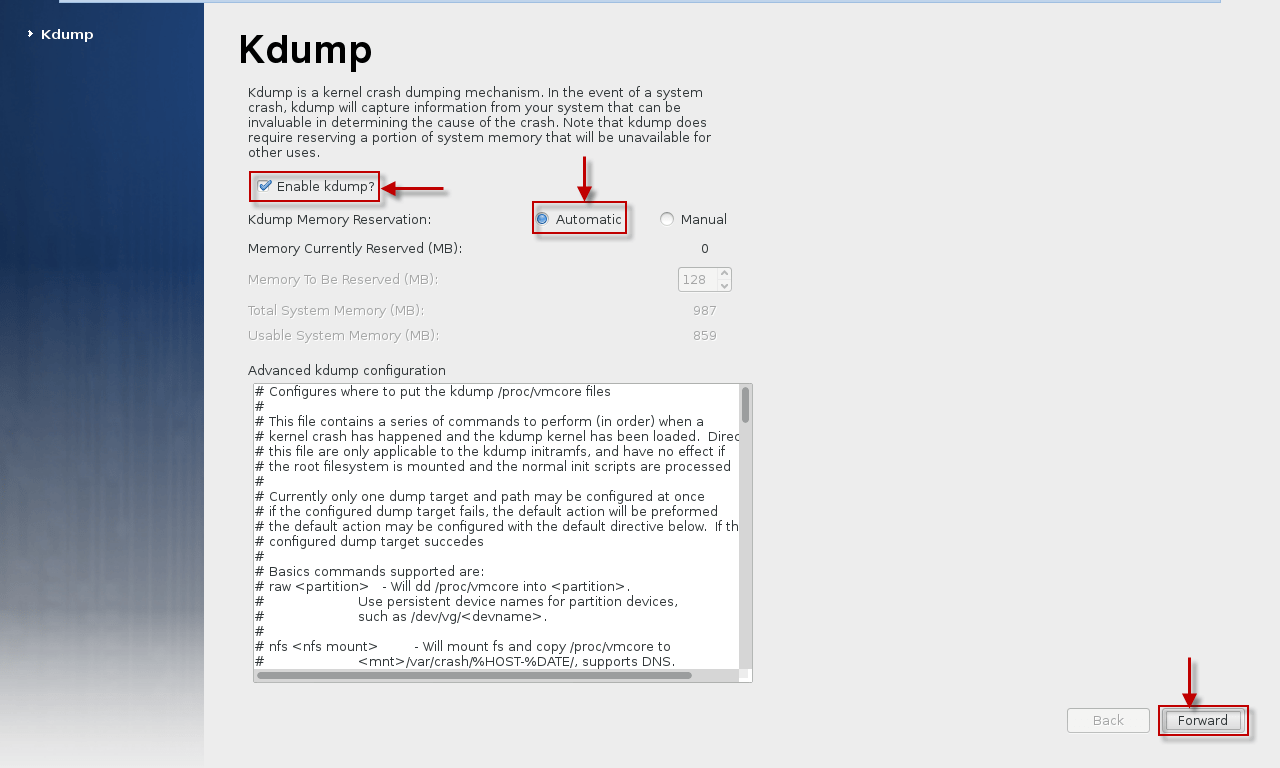

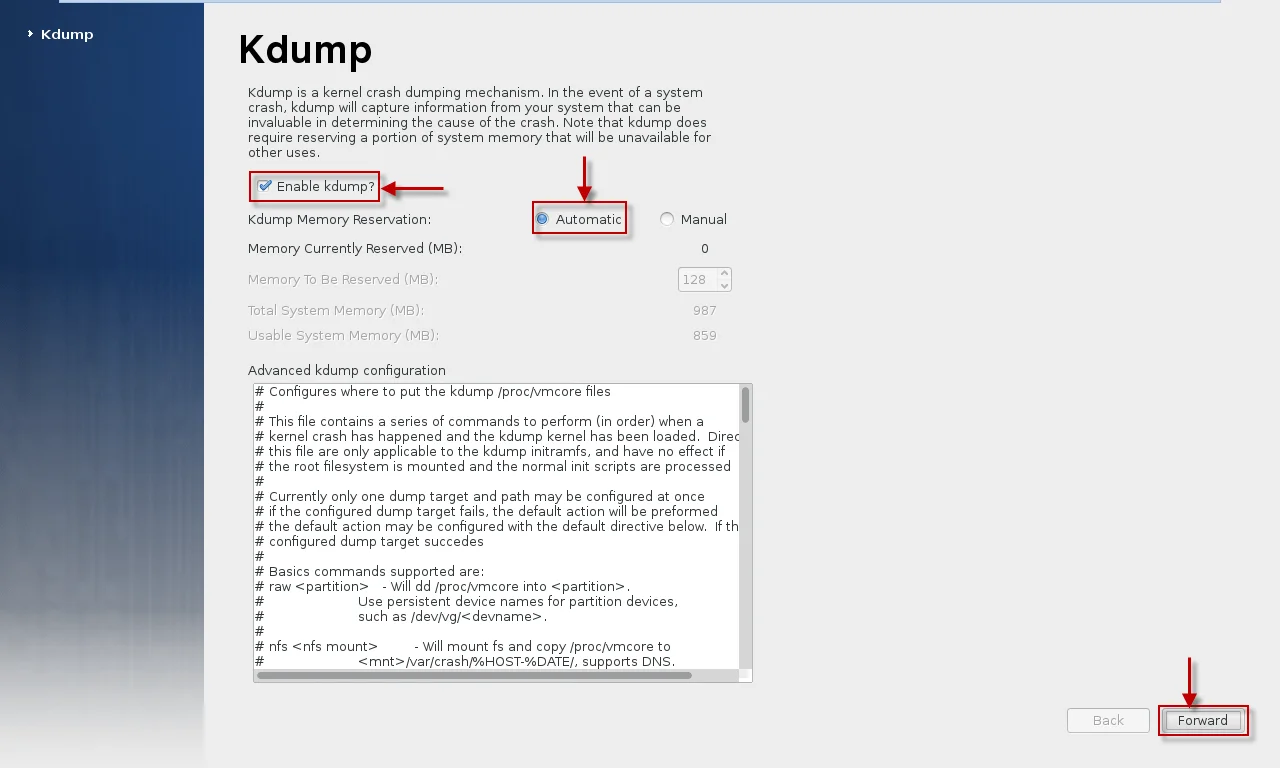

Continue the configuration step and Next you will get the Kdump configuration page.
Let us enable the Kdump and let the machine decide the amount of memory required for the same.
Step by Step CentOS 7 (64 bit) Installation Guide with Screenshots

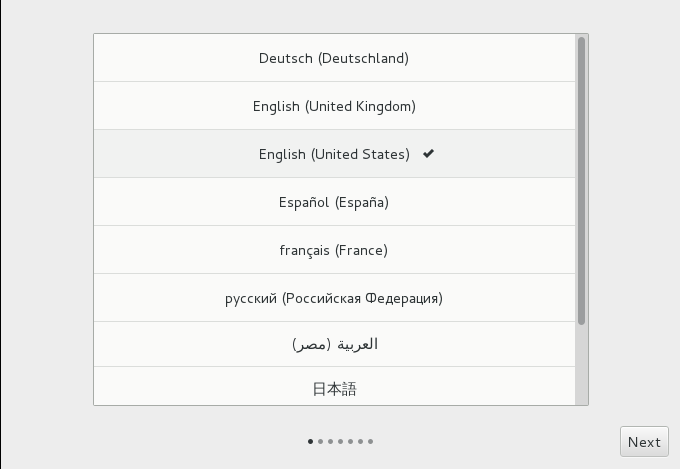

Select the "Language" you prefer

Step by Step CentOS 7 (64 bit) Installation Guide with Screenshots

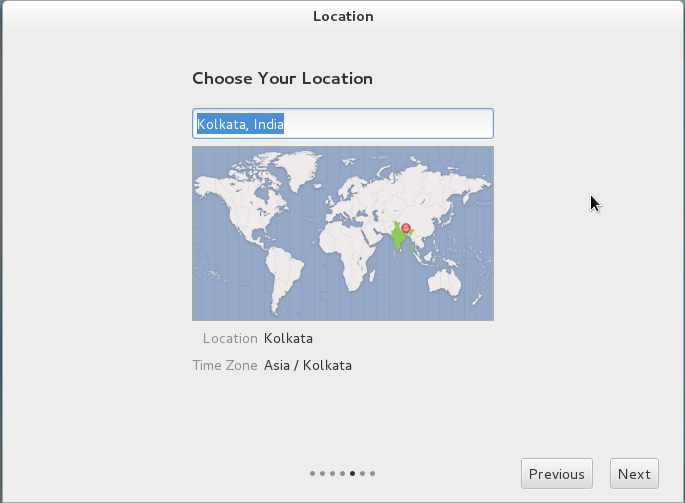

Provide your Location details
Step by Step CentOS 7 (64 bit) Installation Guide with Screenshots

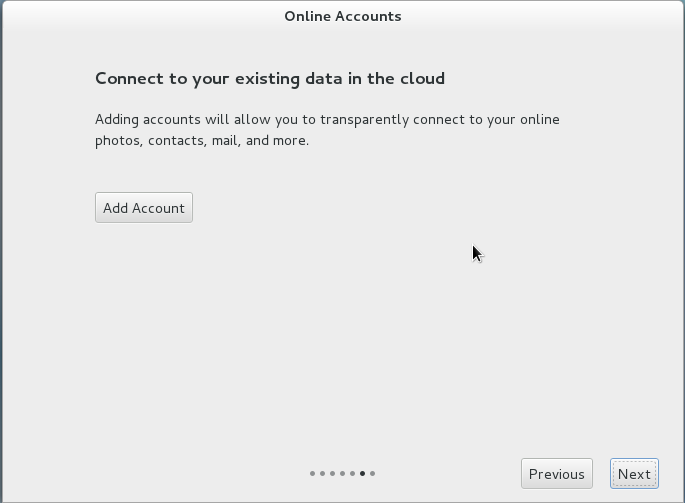

In CentOS 7 this new feature is added where you can connect to your Cloud if you have any existing account. Well we don't have to lets skip this step

Step by Step CentOS 7 (64 bit) Installation Guide with Screenshots

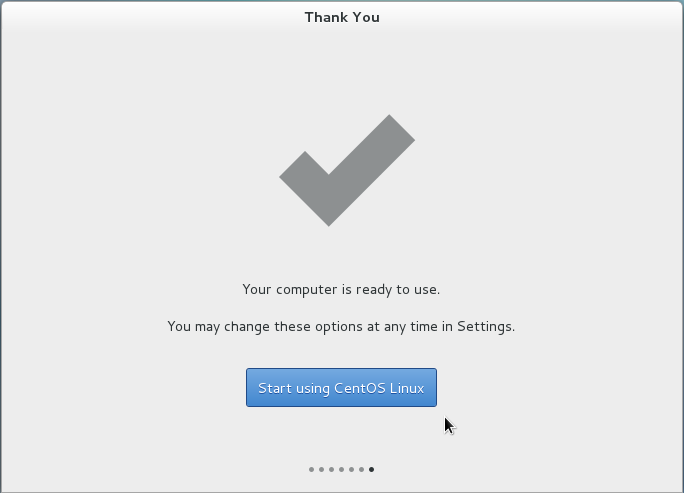

So looks like we have completed all the step and here it says our Installation and Configuration is completed.
Step by Step CentOS 7 (64 bit) Installation Guide with Screenshots

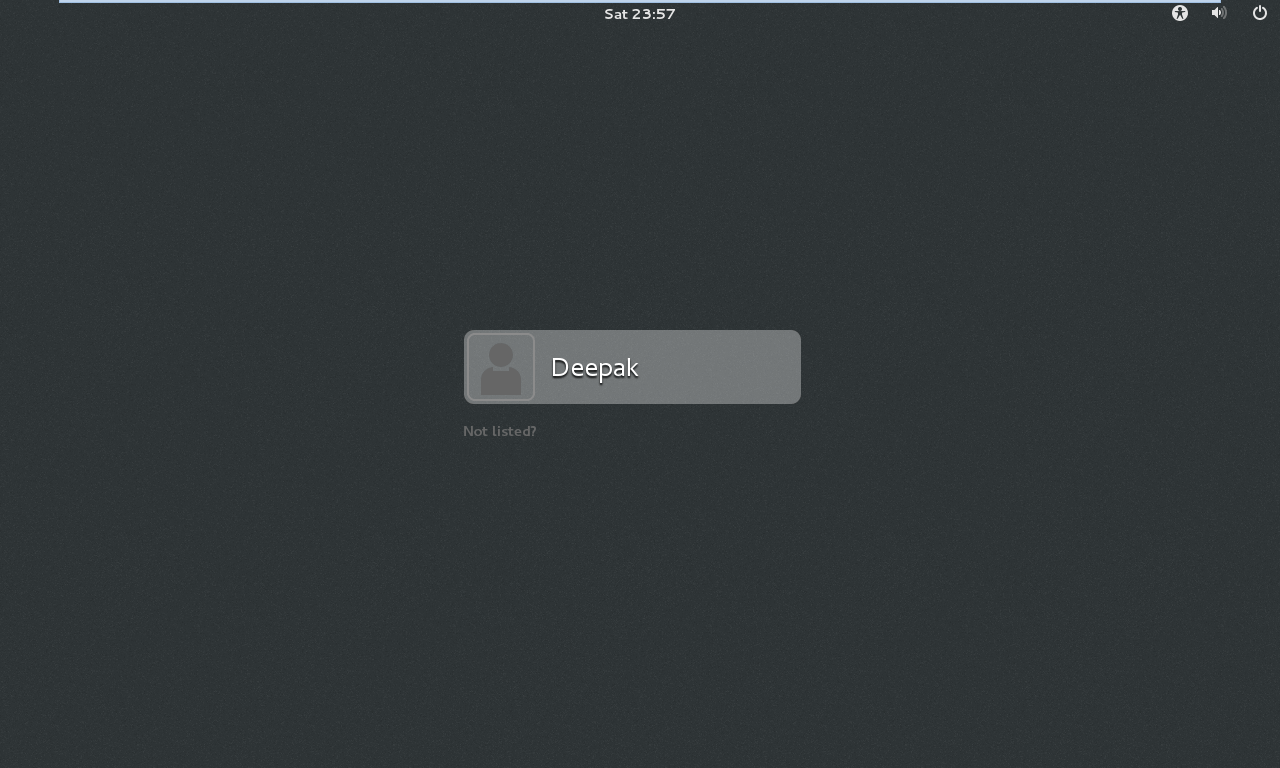

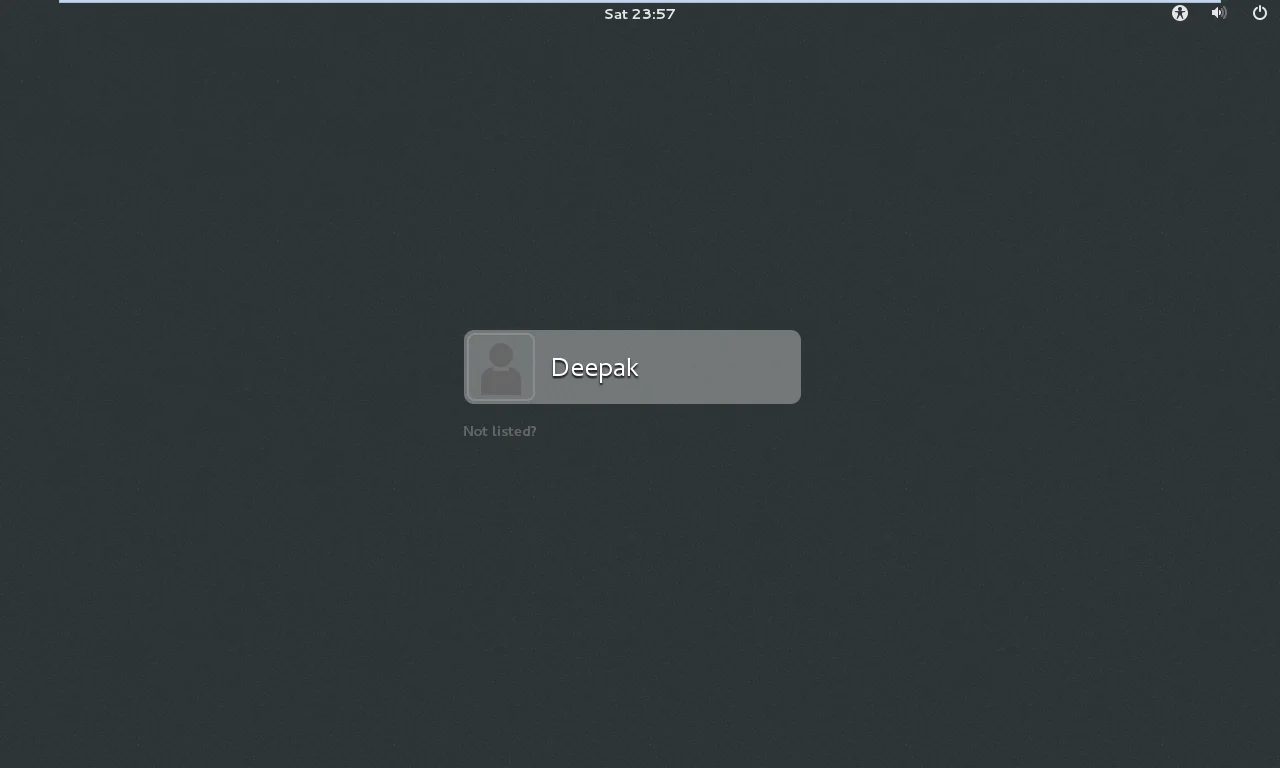

Below is the Login Screen which we get once everything is completed
Step by Step CentOS 7 (64 bit) Installation Guide with Screenshots
