How do I set or change (default) runlevel using systemd in CentOS 7/RHEL 7

How do I set or change (default) runlevel using systemd in CentOS 7/RHEL 7

This article gives you an overview of transition from System V init scripts to Systemd.

Some of the benefits of systemd over the traditional System V init facility include:

  • systemd never loses initial log messages
  • systemd can respawn daemons as needed
  • systemd records runtime data (i.e., captures stdout/stderr of processes)
  • systemd doesn't lose daemon context during runtime
  • systemd can kill all components of a service cleanly

Transition of sysv init scripts to systemd

  • In earlier Red Hat releases before RHEL 7 runlevels were used to identify a set of services that would start or stop when that runlevel was requested.
  • Now starting with Red Hat Enterprise Linux 7 runlevel concept is remove and is replaced with "targets" to group together sets of services that are started or stopped. Systemd has replaced sysVinit as the default service manager.
  • Some of the sysVinit commands have been symlinked to their RHEL 7 counterparts, however they may eventually be deprecated in favor of the standard systemd commands in the future
  • A target can also include other targets (for example, the multi-user target includes an nfs target).
  • There are systemd targets that align with the earlier runlevels.

The following list shows how systemd targets align with traditional runlevels:

Traditional runlevel      New target name     Symbolically linked to...
Runlevel 0           |    runlevel0.target -> poweroff.target
Runlevel 1           |    runlevel1.target -> rescue.target
Runlevel 2           |    runlevel2.target -> multi-user.target
Runlevel 3           |    runlevel3.target -> multi-user.target
Runlevel 4           |    runlevel4.target -> multi-user.target
Runlevel 5           |    runlevel5.target -> graphical.target
Runlevel 6           |    runlevel6.target -> reboot.target
Comparison of SysV Runlevels with systemd targets

Runlevel
Target Units
Description
0
runlevel0.target, poweroff.target
Shut down and power off the system.
1
runlevel1.target, rescue.target
Set up a rescue shell.
2
runlevel2.target, multi-user.target
Set up a non-graphical multi-user system.
3
runlevel3.target, multi-user.target
Set up a non-graphical multi-user system.
4
runlevel4.target, multi-user.target
Set up a non-graphical multi-user system.
5
runlevel5.target, graphical.target
Set up a graphical multi-user system.
6
runlevel6.target, reboot.target
Shut down and reboot the system.

View and change default target (runlevel)

The default runlevel (previously set in the /etc/inittab file) is now replaced by a default target.
The location of the default target is /etc/systemd/system/default.target.
To view the existing default target use the below syntax:
[root@golinuxhub ~]# systemctl get-default
graphical.target
We can also validate the same by checking the symlink of the default.target
[root@golinuxhub ~]# ls -l /etc/systemd/system/default.target
lrwxrwxrwx. 1 root root 36 Aug 20 12:58 /etc/systemd/system/default.target -> /lib/systemd/system/graphical.target
So as you see since the default.target is linked to graphical.target hence the same is set as default.

To set the default target to a different target level using the below syntax:
[root@golinuxhub ~]# systemctl set-default multi-user.target
Removed symlink /etc/systemd/system/default.target.
Created symlink from /etc/systemd/system/default.target to /usr/lib/systemd/system/multi-user.target.
Now validate the same
[root@golinuxhub ~]# ls -l /etc/systemd/system/default.target
lrwxrwxrwx. 1 root root 41 Dec 24 23:31 /etc/systemd/system/default.target -> /usr/lib/systemd/system/multi-user.target
If the server is in rescue mode or in a chrooted environment, the default target can be set with the following command syntax:
# ln -sf /lib/systemd/system/<desired>.target /etc/systemd/system/default.target

Change the current target (runlevel)

In RHEL 6 this was done using telinit runlevel
In RHEL 7 you must use below syntax
# systemctl isolate name.target
For example
[root@golinuxhub ~]# systemctl isolate rescue.target
PolicyKit daemon disconnected from the bus.
We are no longer a registered authentication agent.

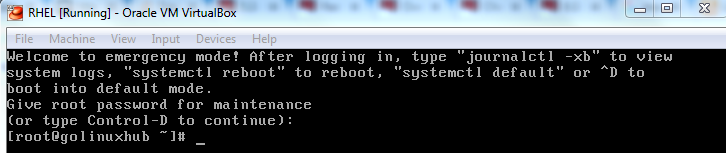

Since I switched to runlevel 1 I got disconnected from my termincal and if you see below screen I have logged in to the rescue mode

How do I set or change (default) runlevel using systemd in CentOS 7/RHEL 7

Changing to Rescue Mode

You can also use below command to switch to rescue mode
[root@golinuxhub ~]# systemctl rescue
PolicyKit daemon disconnected from the bus.
We are no longer a registered authentication agent.

Broadcast message from root@golinuxhub.lab on pts/1 (Sun 2017-12-24 23:47:08 IST):

The system is going down to rescue mode NOW!

IMPORTANT NOTE: This command is similar to systemctl isolate rescue.target, but it also sends an informative message to all users that are currently logged into the system. To prevent systemd from sending this message, run this command with the --no-wall command line option:
# systemctl --no-wall rescue

Viewing the Current Target

To list all currently loaded target units, run the following command:
[root@golinuxhub ~]# systemctl list-units --type target
UNIT                   LOAD   ACTIVE SUB    DESCRIPTION
basic.target           loaded active active Basic System
cryptsetup.target      loaded active active Encrypted Volumes
getty.target           loaded active active Login Prompts
UNIT                   LOAD   ACTIVE SUB    DESCRIPTION
basic.target           loaded active active Basic System
cryptsetup.target      loaded active active Encrypted Volumes
getty.target           loaded active active Login Prompts
graphical.target       loaded active active Graphical Interface
local-fs-pre.target    loaded active active Local File Systems (Pre)
local-fs.target        loaded active active Local File Systems
multi-user.target      loaded active active Multi-User System
network-online.target  loaded active active Network is Online
network.target         loaded active active Network
nfs-client.target      loaded active active NFS client services
nss-user-lookup.target loaded active active User and Group Name Lookups
paths.target           loaded active active Paths
remote-fs-pre.target   loaded active active Remote File Systems (Pre)
remote-fs.target       loaded active active Remote File Systems
slices.target          loaded active active Slices
sockets.target         loaded active active Sockets
swap.target            loaded active active Swap
sysinit.target         loaded active active System Initialization
timers.target          loaded active active Timers

LOAD   = Reflects whether the unit definition was properly loaded.
ACTIVE = The high-level unit activation state, i.e. generalization of SUB.
The above command shows only the "ACTIVE" units. If you want to list all loaded units regardless of their state, run this command with the --all or -a command line option:
[root@golinuxhub ~]# systemctl list-units --type target --all
  UNIT                   LOAD      ACTIVE   SUB    DESCRIPTION
  basic.target           loaded    active   active Basic System
  cryptsetup.target      loaded    active   active Encrypted Volumes
  emergency.target       loaded    inactive dead   Emergency Mode
  final.target           loaded    inactive dead   Final Step
  getty.target           loaded    active   active Login Prompts
  graphical.target       loaded    active   active Graphical Interface
  local-fs-pre.target    loaded    active   active Local File Systems (Pre)
  local-fs.target        loaded    active   active Local File Systems
  multi-user.target      loaded    active   active Multi-User System
  network-online.target  loaded    active   active Network is Online
  network-pre.target     loaded    inactive dead   Network (Pre)
  network.target         loaded    active   active Network
  nfs-client.target      loaded    active   active NFS client services
  nss-lookup.target      loaded    inactive dead   Host and Network Name Lookups
  nss-user-lookup.target loaded    active   active User and Group Name Lookups
  paths.target           loaded    active   active Paths
  remote-fs-pre.target   loaded    active   active Remote File Systems (Pre)
  remote-fs.target       loaded    active   active Remote File Systems
  rescue.target          loaded    inactive dead   Rescue Mode
  shutdown.target        loaded    inactive dead   Shutdown
  slices.target          loaded    active   active Slices
  sockets.target         loaded    active   active Sockets
  sound.target           loaded    inactive dead   Sound Card
  swap.target            loaded    active   active Swap
  sysinit.target         loaded    active   active System Initialization
● syslog.target          not-found inactive dead   syslog.target
  time-sync.target       loaded    inactive dead   System Time Synchronized
  timers.target          loaded    active   active Timers
  umount.target          loaded    inactive dead   Unmount All Filesystems

LOAD   = Reflects whether the unit definition was properly loaded.
ACTIVE = The high-level unit activation state, i.e. generalization of SUB.
SUB    = The low-level unit activation state, values depend on unit type.

29 loaded units listed.
To show all installed unit files use 'systemctl list-unit-files'.

Location of services

  • Before systemd, services were stored as scripts in the /etc/init.d directory, then linked to different runlevel directories (such as /etc/rc3.d, /etc/rc5.d, and so on).
  • Services with systemd are named something.service, such as firewalld.service, and are stored in /lib/systemd/system and /etc/systemd/system directories
  • Think of the /lib files as being more permanent and the /etc files as the place you can modify configurations as needed.
  • When you enable a service in RHEL 7, the service file is linked to a file in the /etc/systemd/system/multi-user.target.wants directory

For example if you run

systemctl enable kdump.service a symbolic link is created from /etc/systemd/system/multi-user.target.wants/kdump.service that points to /usr/lib/systemd/system/kdump.service as you see below
Created symlink from /etc/systemd/system/multi-user.target.wants/kdump.service to /usr/lib/systemd/system/kdump.service.
Also, the older System V init scripts were actual shell scripts. The systemd files tasked to do the same job are more like .ini files that contain the information needed to launch a service.

Configuration files

  • The /etc/inittab file was used by the init process in RHEL 6 and earlier to point to the initialization files (such as /etc/rc.sysinit) and runlevel service directories (such as /etc/rc5.d) needed to start up the system.
  • In RHEL 7, services can be modified by adding files to the /etc/systemd directory to override the permanent service files in the /usr/lib/systemd directories.

Reference:
Overview of systemd
