Download the ISO from VMware and write it to DVD or Pendrive  in bootable mode.

NOTE: If the target blade has iLO console then you can directly mount the downloaded ISO using the iLO virtual media

Insert the DVD in server and start the server with bootable media as DVD or pendrive

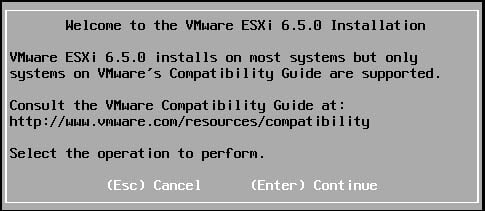

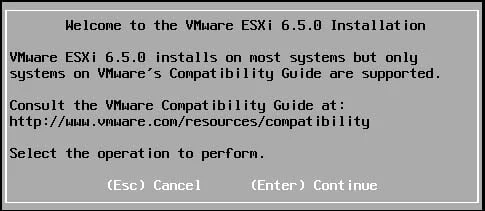

After loading the image it will prompt with warning message as

Step by step tutorial guide with screenshots to Install and Configure VMware ESXi 6.5

Enter to continue the setup

Step by step tutorial guide with screenshots to Install and Configure VMware ESXi 6.5

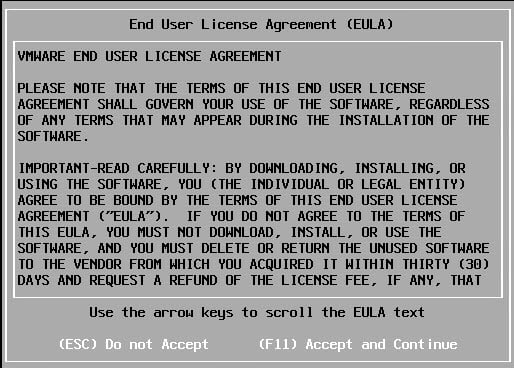

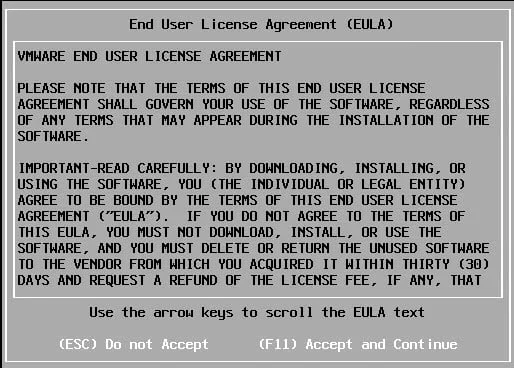

Press F11 to accept the License Agreement and continue

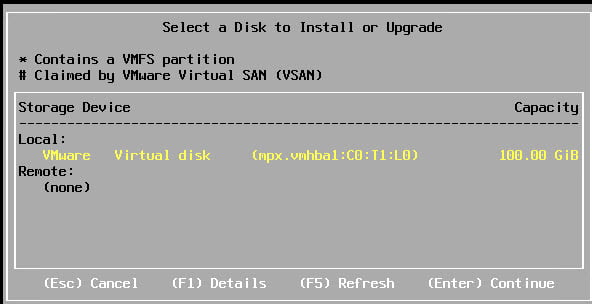

It will load all the available devices on the server and prompt for selecting storage devices. It will show all the local and remote storage devices. here I have only one storage device so I will select it and enter to continue

Step by step tutorial guide with screenshots to Install and Configure VMware ESXi 6.5

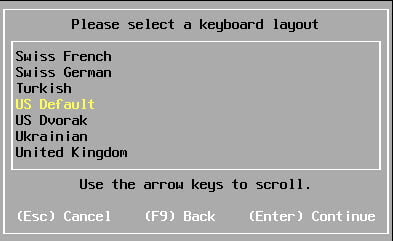

Select the keyboard layout you are using. here I am using US so selecting the US default keyboard layout

Step by step tutorial guide with screenshots to Install and Configure VMware ESXi 6.5

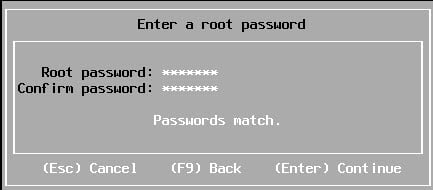

Enter the root password to manage the server and enter to continue

Step by step tutorial guide with screenshots to Install and Configure VMware ESXi 6.5

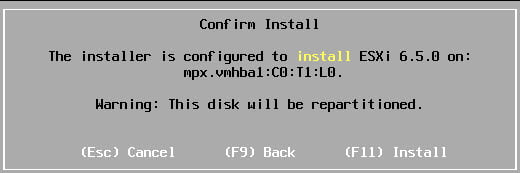

Press F11 to start the installation

Step by step tutorial guide with screenshots to Install and Configure VMware ESXi 6.5

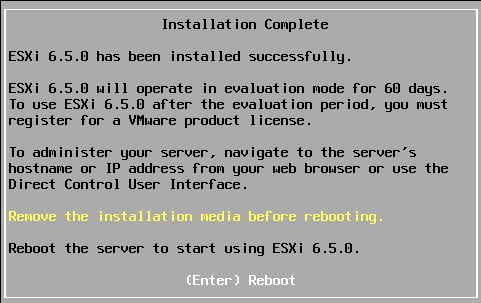

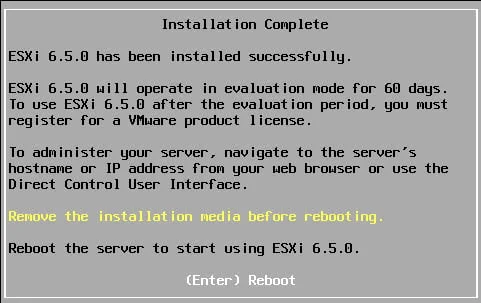

Once the installation is completed remove the DVD or Pen-drive and press Enter to reboot the server.

Step by step tutorial guide with screenshots to Install and Configure VMware ESXi 6.5

Once the server is UP post reboot it will start loading the Esxi 6.5 which will take a while.

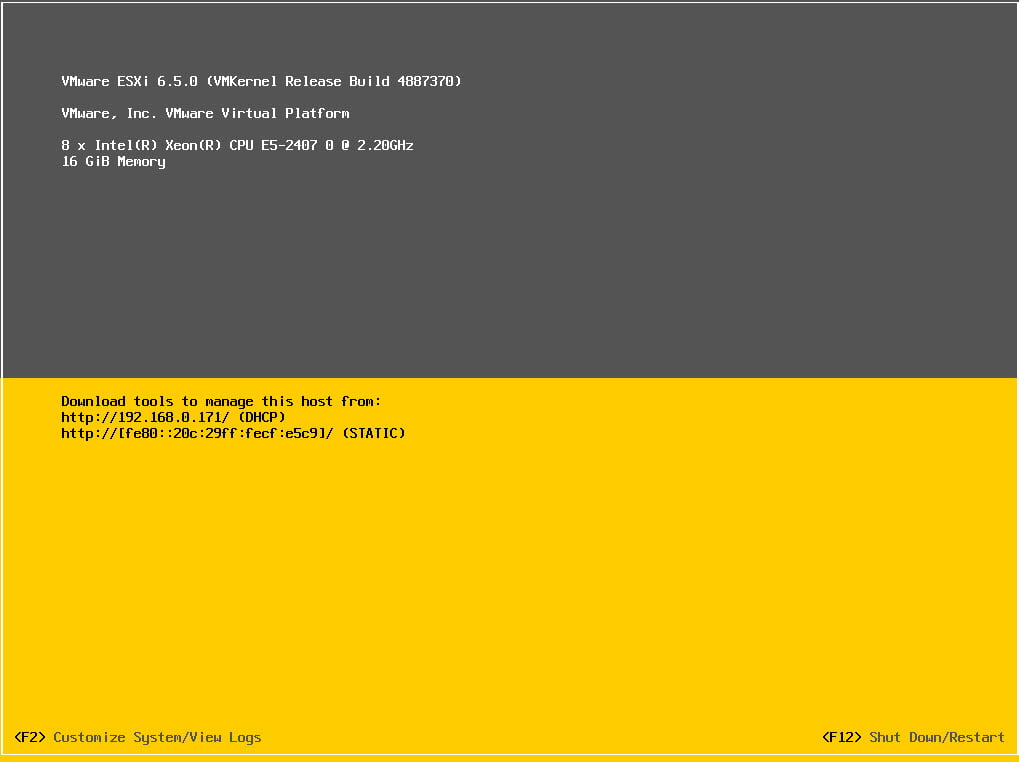

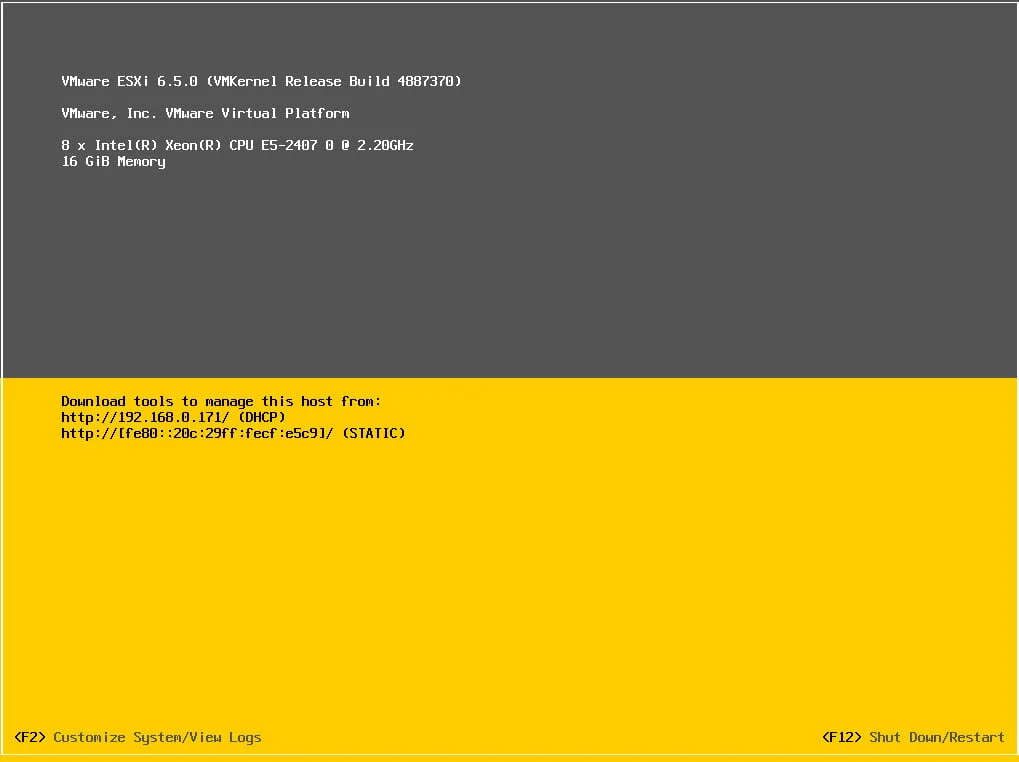

Wait for the below screen to appear on the console

Step by step tutorial guide with screenshots to Install and Configure VMware ESXi 6.5

If you have the DHCP server in the network it will take the IP automatically. you can use this IP to access vSpere web client or you can follow below steps to configure the static IP to the network:

Configure Static network for the ESXi

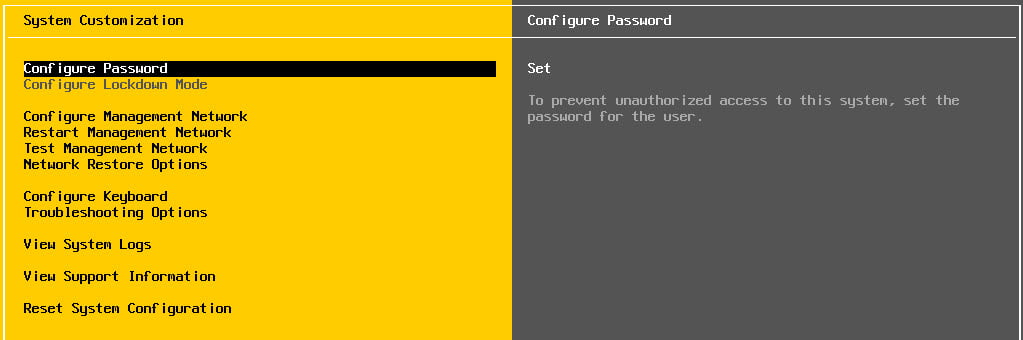

1. Click F2 to Customise system. Enter the root password which we have set at the time of installation.

Step by step tutorial guide with screenshots to Install and Configure VMware ESXi 6.5

2. Go to Configure Management Network and hit Enter

Step by step tutorial guide with screenshots to Install and Configure VMware ESXi 6.5

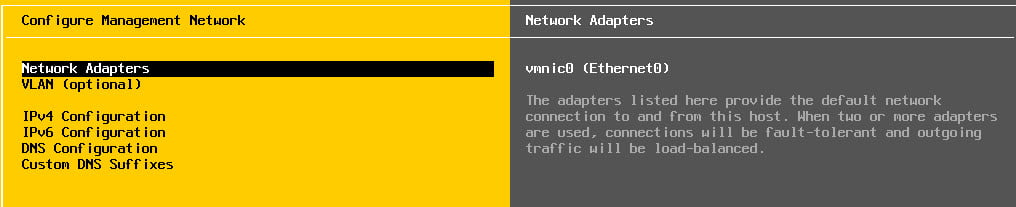

3. Go to Network Adapter and select the correct adapter which you want to use it as management network adapter.

Then go to IPv4 configuration

Step by step tutorial guide with screenshots to Install and Configure VMware ESXi 6.5

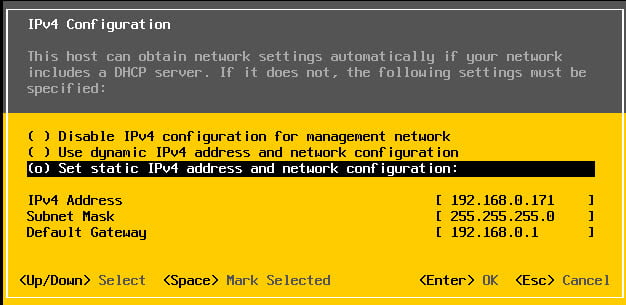

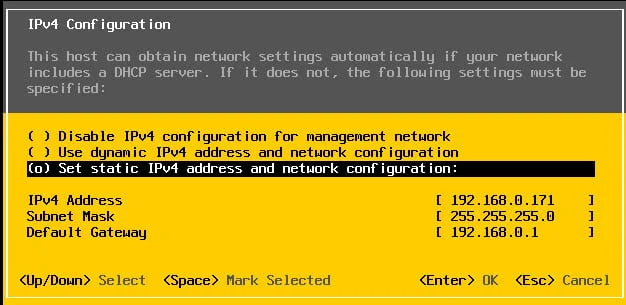

4. Select Set static IPv4 address and fill all the required tabs then click OK

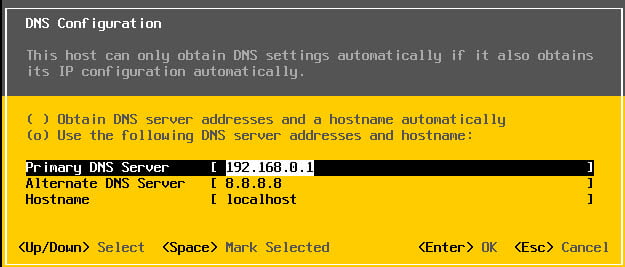

5. Go to DNS configuration and fill all the DNS servers and Hostname for the server.

Step by step tutorial guide with screenshots to Install and Configure VMware ESXi 6.5

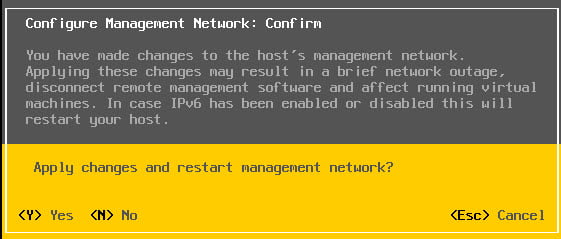

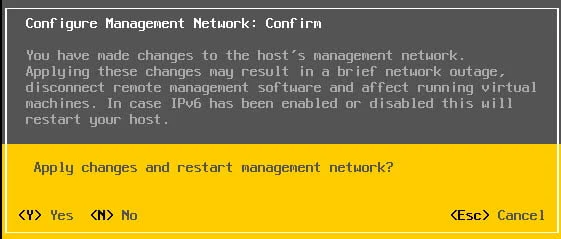

6. Press Esc key to go back to the main console and then Y when the below windows prompts to save and Restart the Management network

Step by step tutorial guide with screenshots to Install and Configure VMware ESXi 6.5

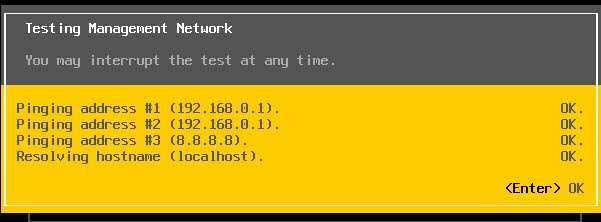

7. Select Test Management Network in main menu and click enter to start the test

Step by step tutorial guide with screenshots to Install and Configure VMware ESXi 6.5

If the gateway and DNS test pass then your Network configuration is correct or else you have made some mistake while configuring the Management network

NOTE: If the Hostname doesn't resolve then make entry for the proper host name in your DNS server. If the Resolving hostname fails you can use the IP to access.

To connect to vSphere Web client go to any browser and enter the IP with https:// then an certificate error page appears

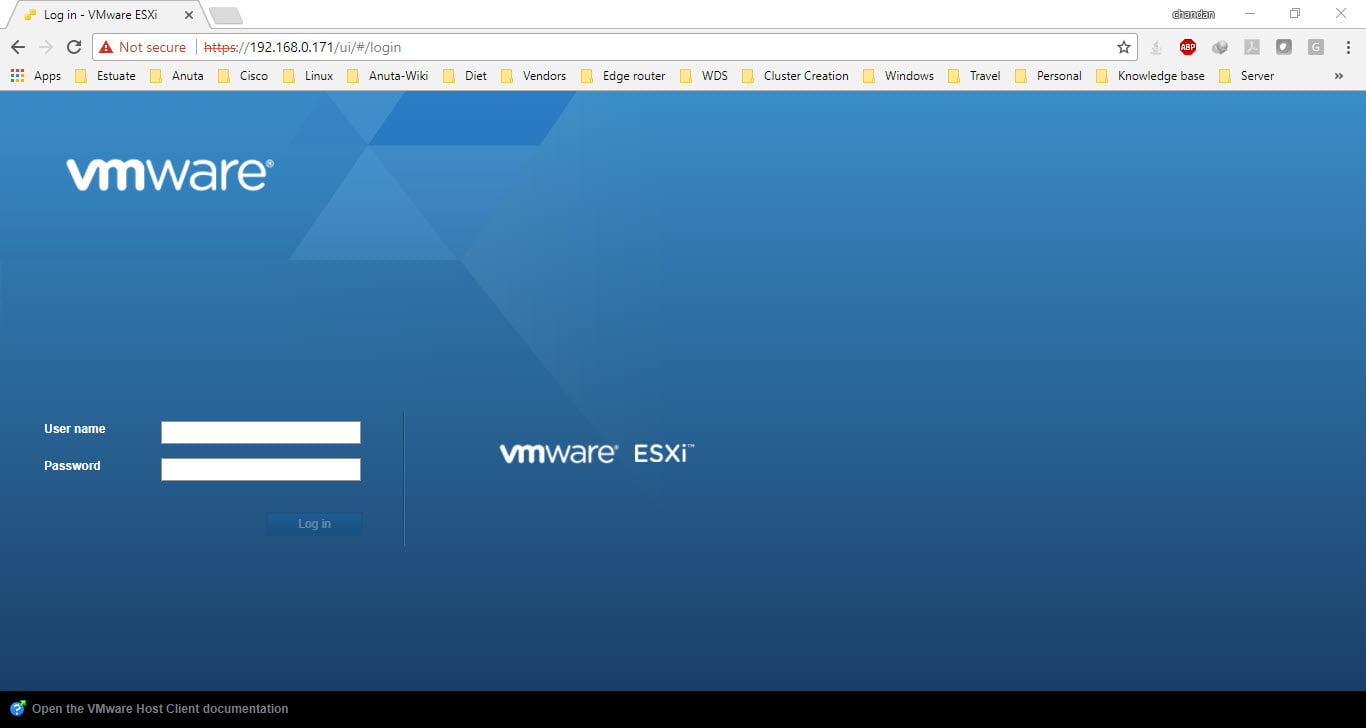

Click Advanced and proceed to the website unsafe. it will prompt to vSphere Web client

Step by step tutorial guide with screenshots to Install and Configure VMware ESXi 6.5

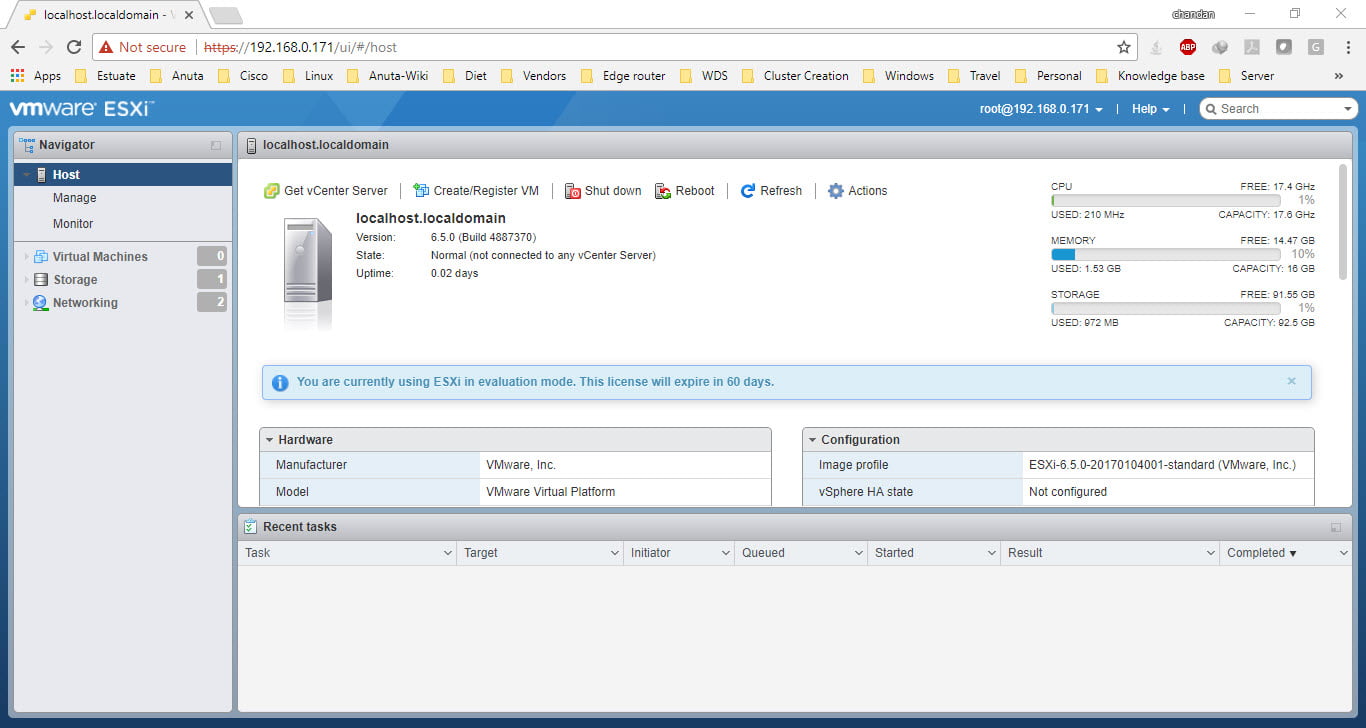

Provide the correct root username and password and login to Esxi 6.5 Web client

Step by step tutorial guide with screenshots to Install and Configure VMware ESXi 6.5

I hope the article was useful
